Woodworking pipe clamp
| Item No. | 11003 |
|---|---|
| Name | Woodworking pipe clamp |
| Support OEM | Yes |
| Material | Malleable iron casting |
| Sizes | 1/2" (4 fen) and 3/4" (6 fen) |
| Pipe connection | 1/2": inner dia. 15 mm / outer dia. 21 mm. 3/4": inner dia. 20 mm / outer dia. 26 mm |

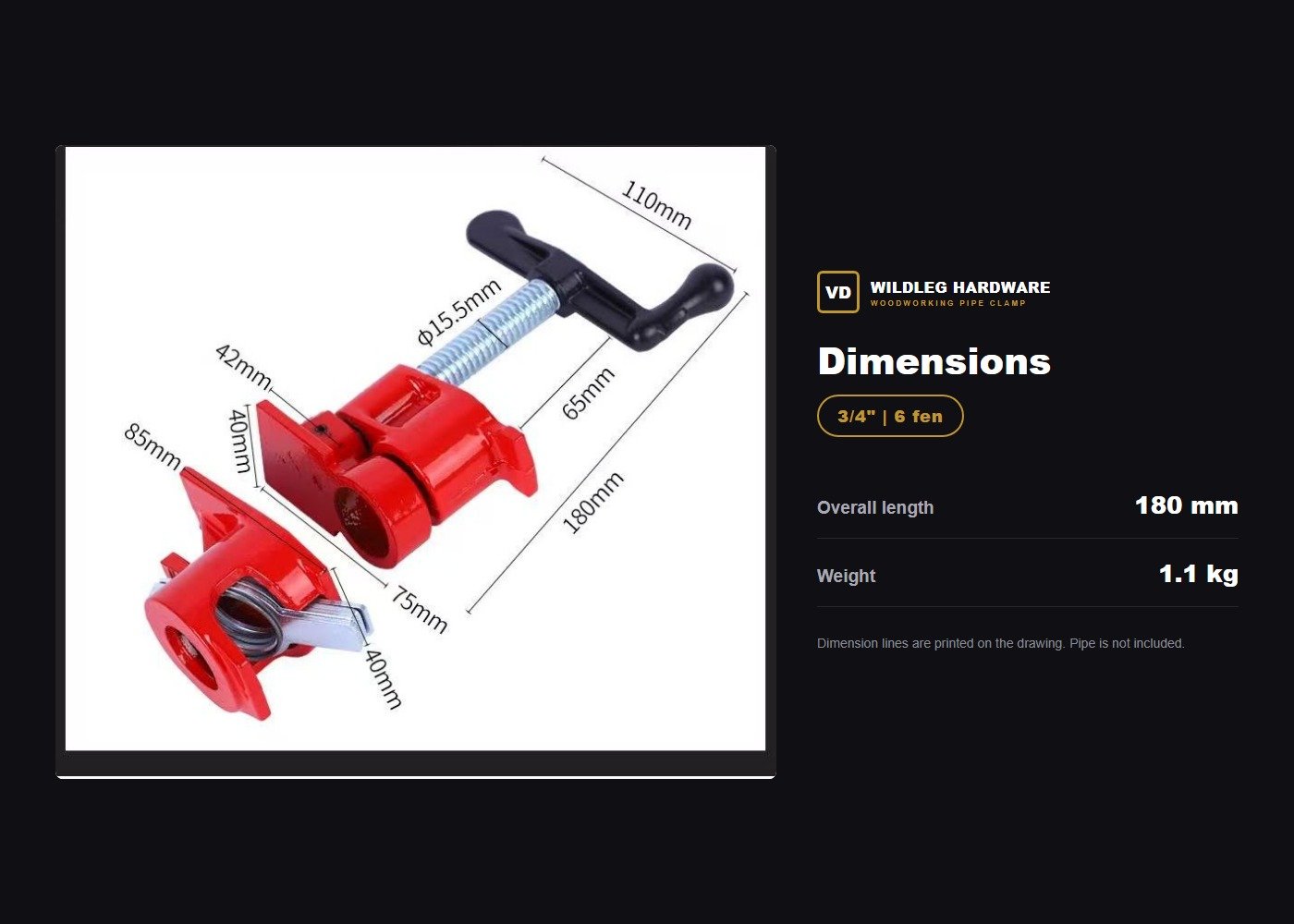

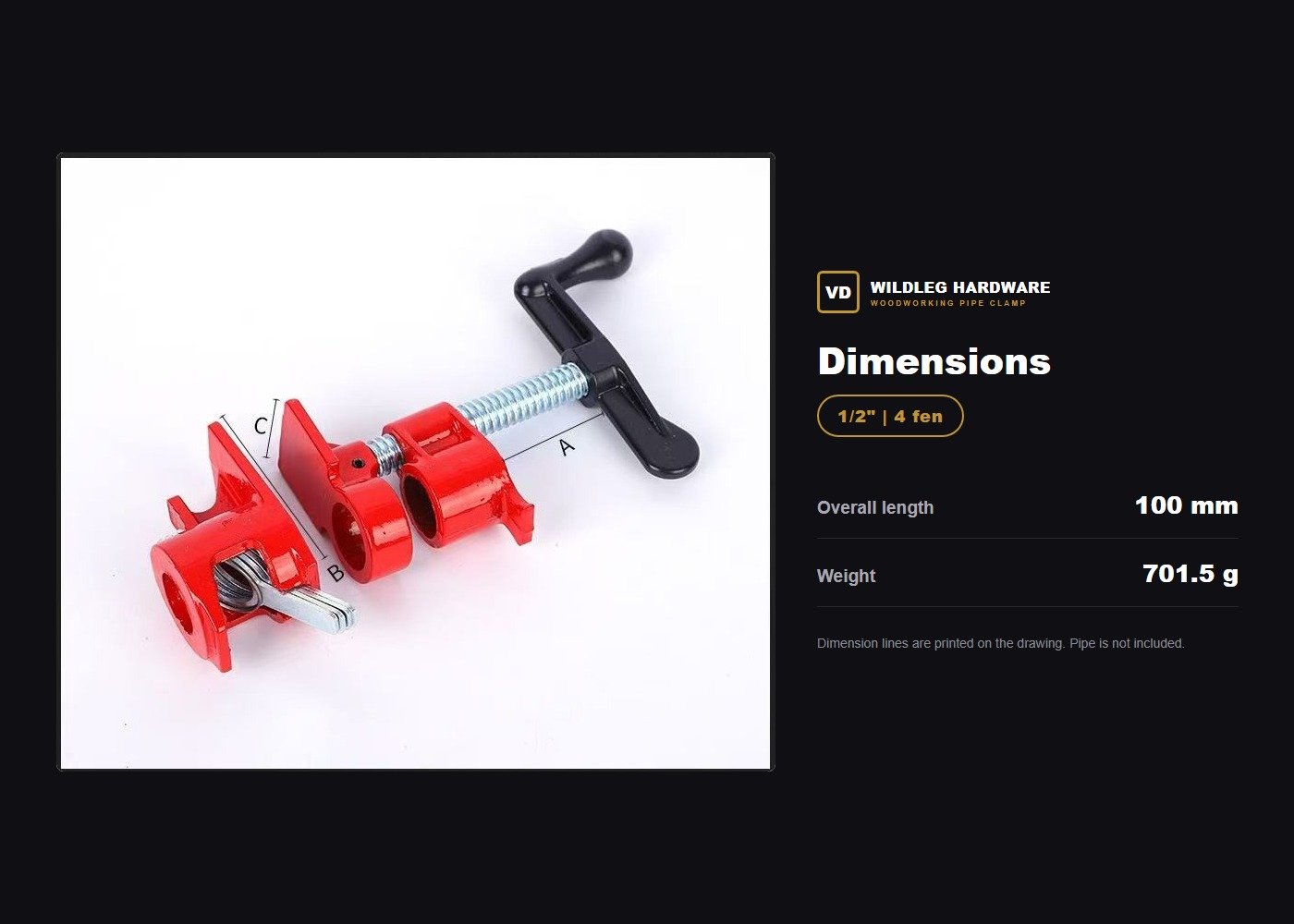

| Overall length | 100 mm (1/2") | 180 mm (3/4") |
| Weight | 701.5 g (1/2") | 1.1 kg (3/4") |
| Colour | Red |
| Clamping method | Hand-crank screw with high-tension spring |
| Application | Panel glue-ups, furniture assembly, stone splicing |
| MOQ | 20 cartons total, mixed sizes accepted |
DESCRIPTION
Specifications

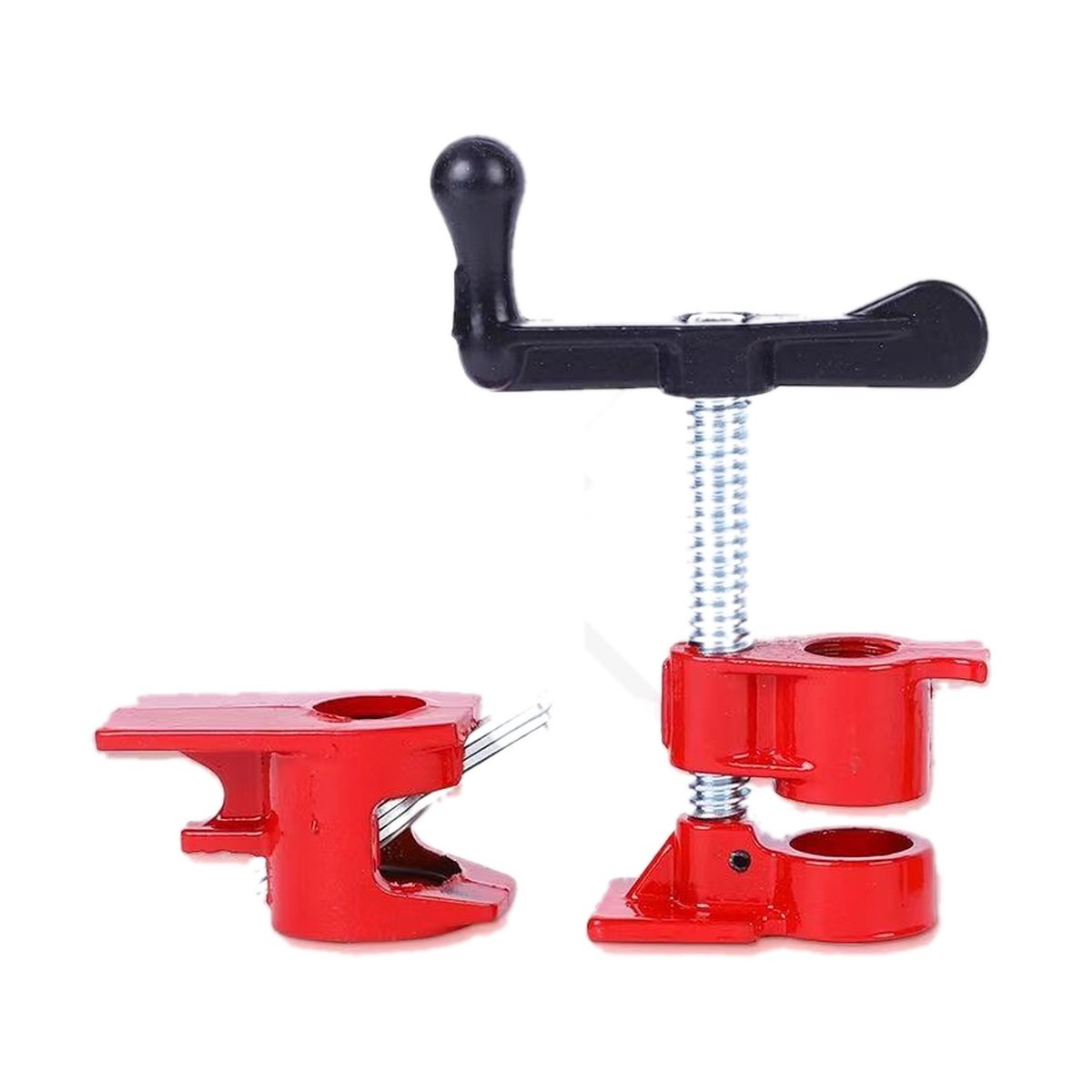

Two sizes are made: 1/2" (4 fen) and 3/4" (6 fen). Both are cast in malleable iron, finished in red, and tightened with a hand crank and a high-tension spring. The pipe itself is not included.
| Size | Pipe connection | Overall length | Weight | Colour | Material |
|---|---|---|---|---|---|

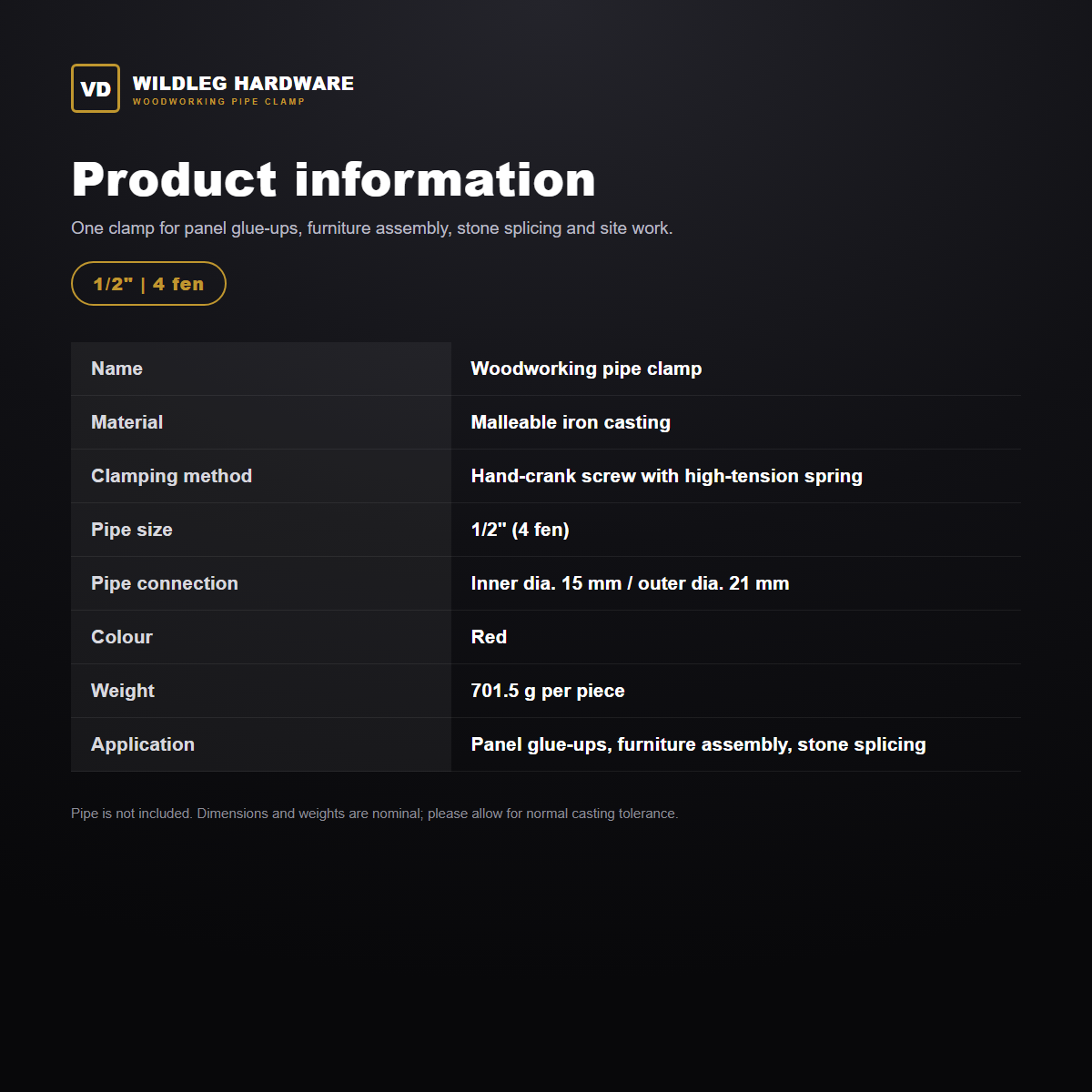

| 1/2" (4 fen) | Inner dia. 15 mm / outer dia. 21 mm | 100 mm | 701.5 g | Red | Malleable iron casting |
| 3/4" (6 fen) | Inner dia. 20 mm / outer dia. 26 mm | 180 mm | 1.1 kg | Red | Malleable iron casting |

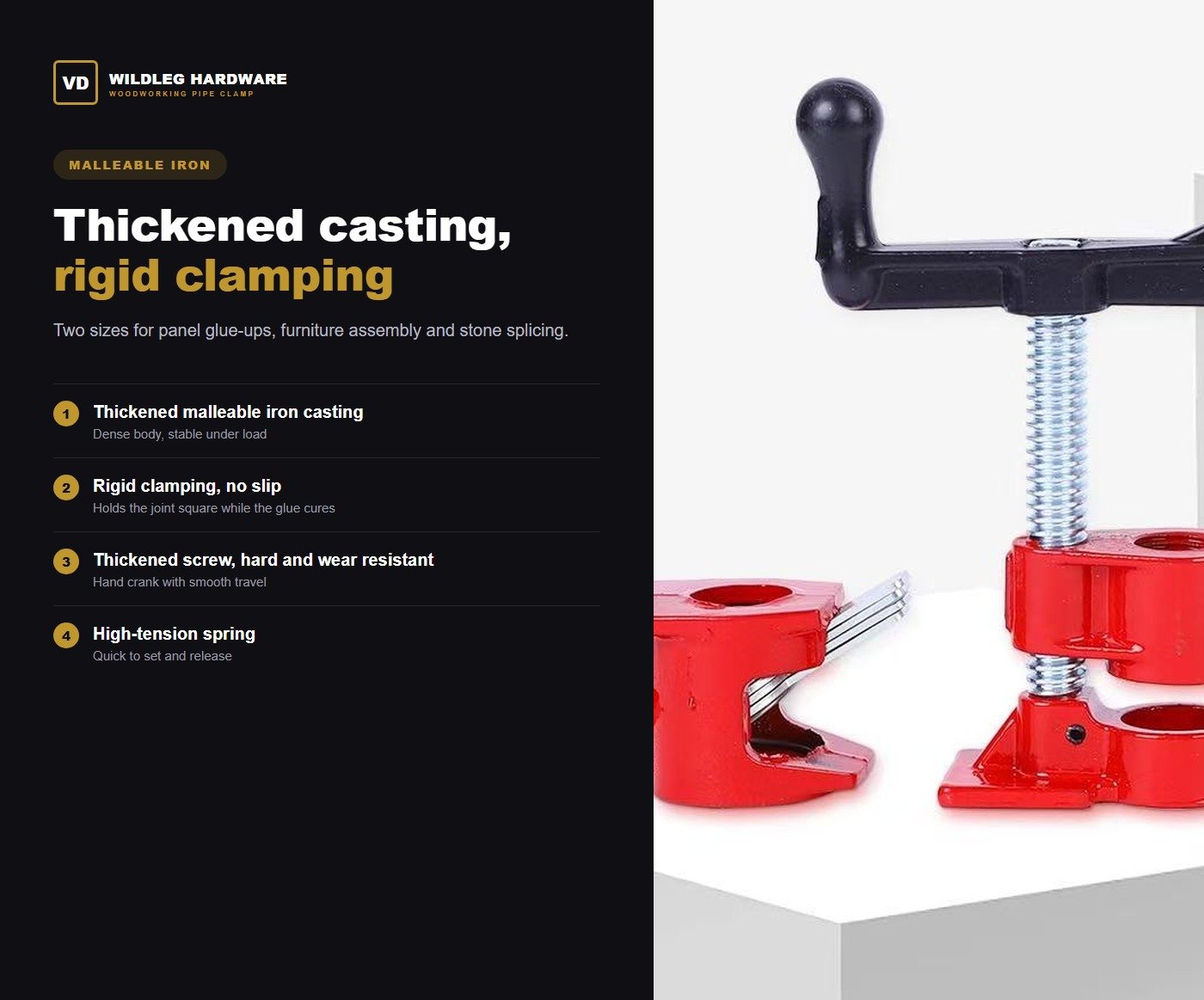

Why it holds
- Thickened malleable iron casting — a dense body that stays stable under load
- Rigid clamping, no slip — holds the joint square while the glue cures
- Thickened screw, hard and wear resistant — hand crank with smooth travel along the thread
- High-tension spring — quick to set and to release
- One clamp, many uses — panel glue-ups, furniture assembly, site work and stone splicing

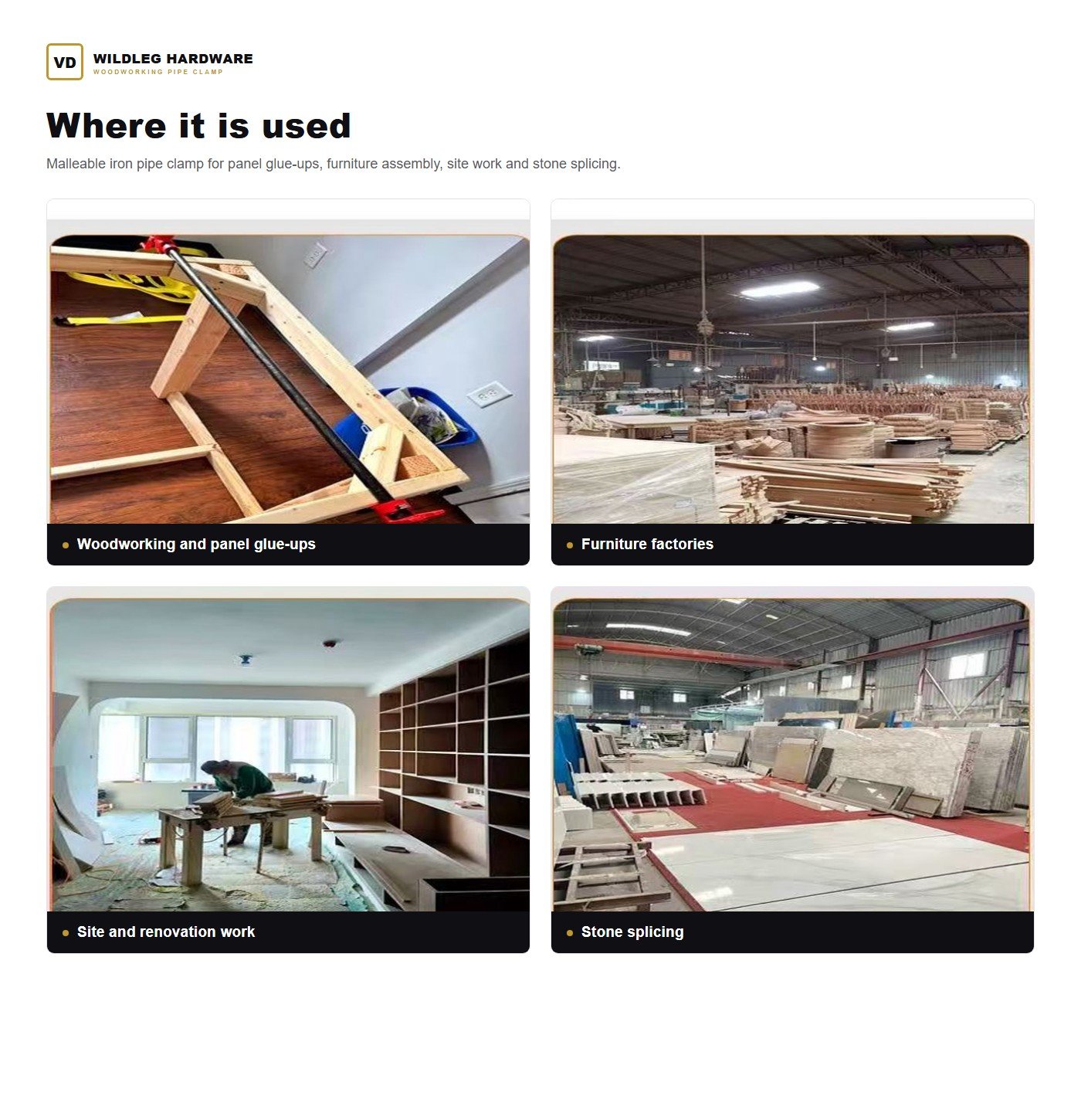

Where it is used
Packing
Clamps are packed in export cartons. Carton quantity, net weight, gross weight and carton dimensions are confirmed with the quotation, because they depend on the size mix in your order.
Registered designs
Two Chinese design patents cover the appearance of our F-clamp and ratchet A-clamp ranges: ZL 2025 3 0024613.8 (granted 12 September 2025) and ZL 2025 3 0024614.2 (granted 5 September 2025). This pipe clamp is not covered by those registrations, and we do not claim that it is.
Private label and OEM
- Custom body colour
- Laser marking
- Screen printing
