Ratchet A-clamp

A one-hand spring clamp with a ratchet hold, for holding panels, edging and joints while glue sets. Body in glass-fibre reinforced nylon. Standard colours blue and green; other colours to order.

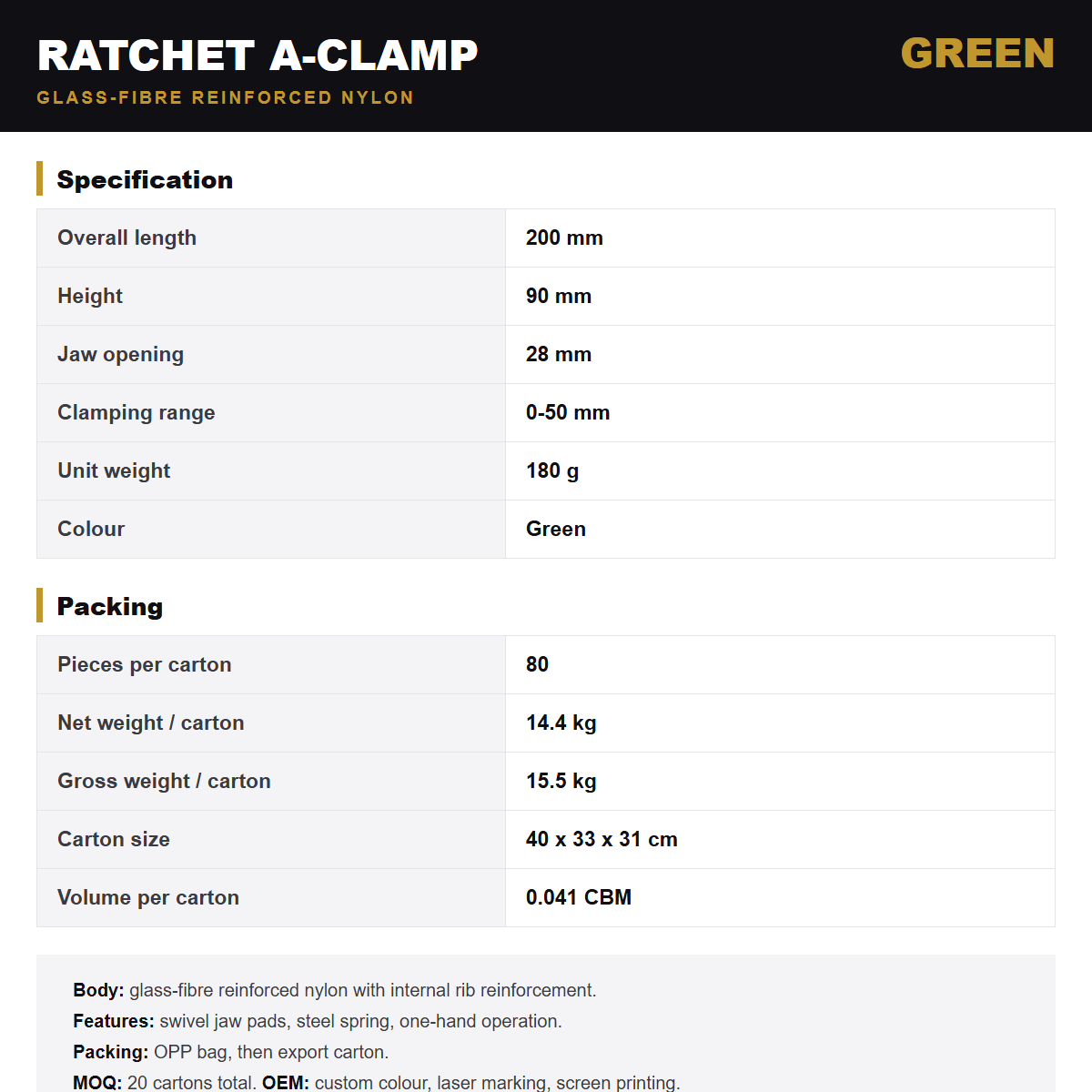

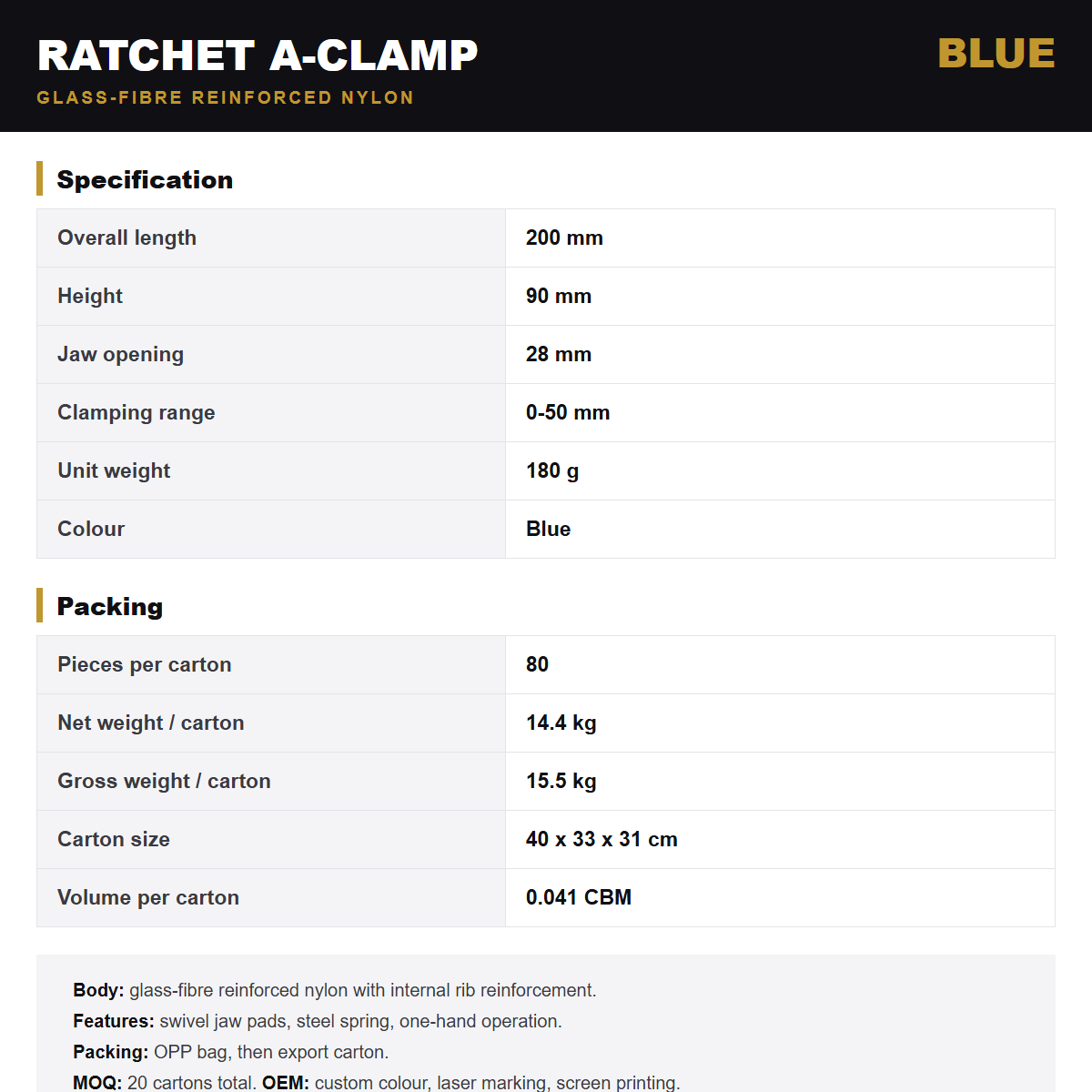

Specifications

Overall length	200 mm
Height	90 mm
Jaw opening	28 mm
Clamping range	0-50 mm
Unit weight	180 g
Body material	Glass-fibre reinforced nylon
Spring	Steel
Standard colours	Blue, green
Packaging	OPP bag, then export carton

Reference values only; final specifications are subject to actual measurement.

Packing data

Model	Pcs / carton	N.W. (kg)	G.W. (kg)	Carton (cm)	CBM
Ratchet A-clamp, blue	80	14.4	15.5	40 x 33 x 31	0.041
Ratchet A-clamp, green	80	14.4	15.5	40 x 33 x 31	0.041

Packed in OPP bags. G.W. is the gross weight per carton including packaging.

Construction

Glass-fibre reinforced nylon body – stiffer and more UV-stable than plain nylon
Internal rib reinforcement – the open web pattern adds rigidity without weight
Swivel jaw pads – self-align on angled or uneven workpieces

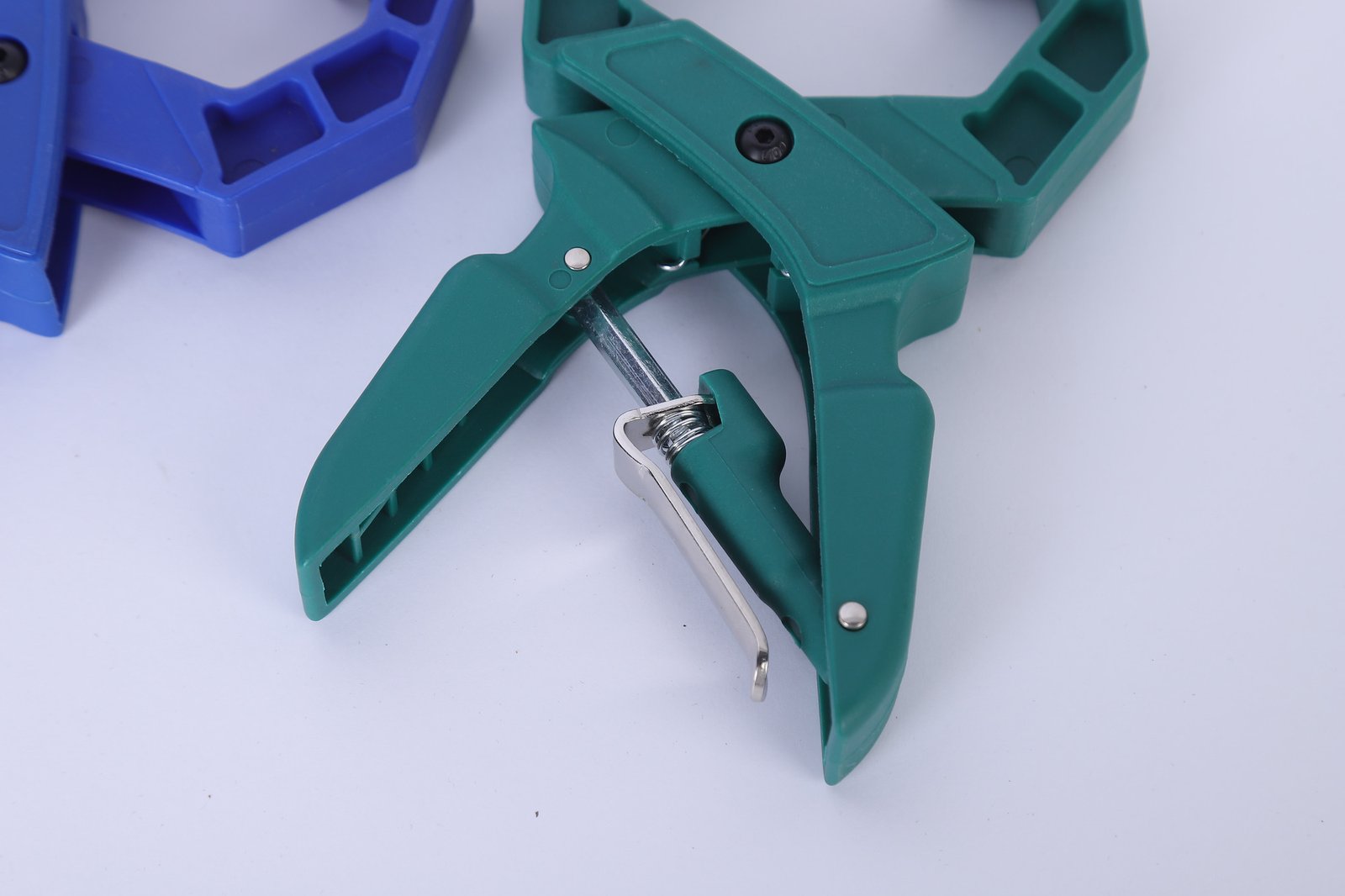

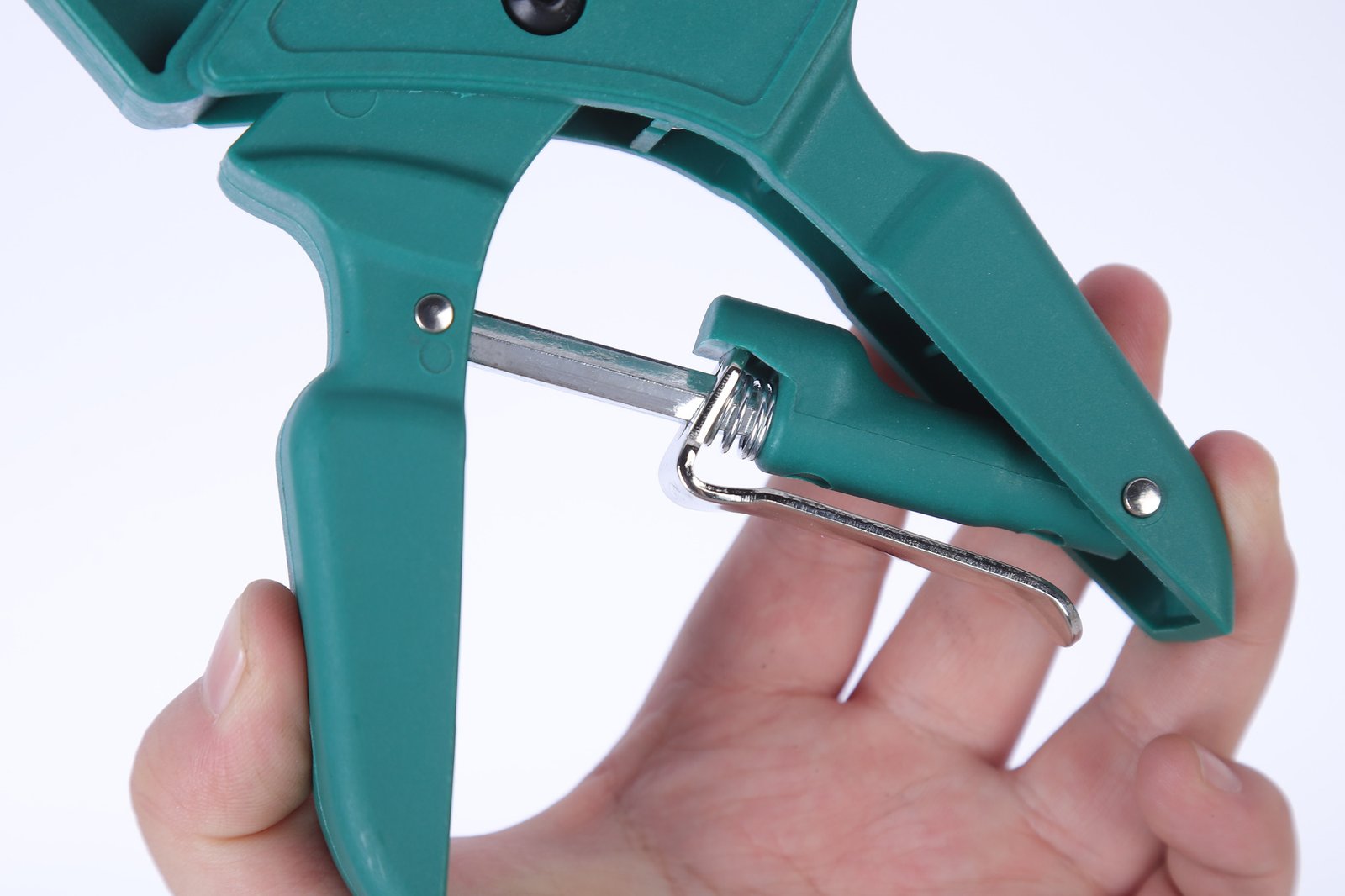

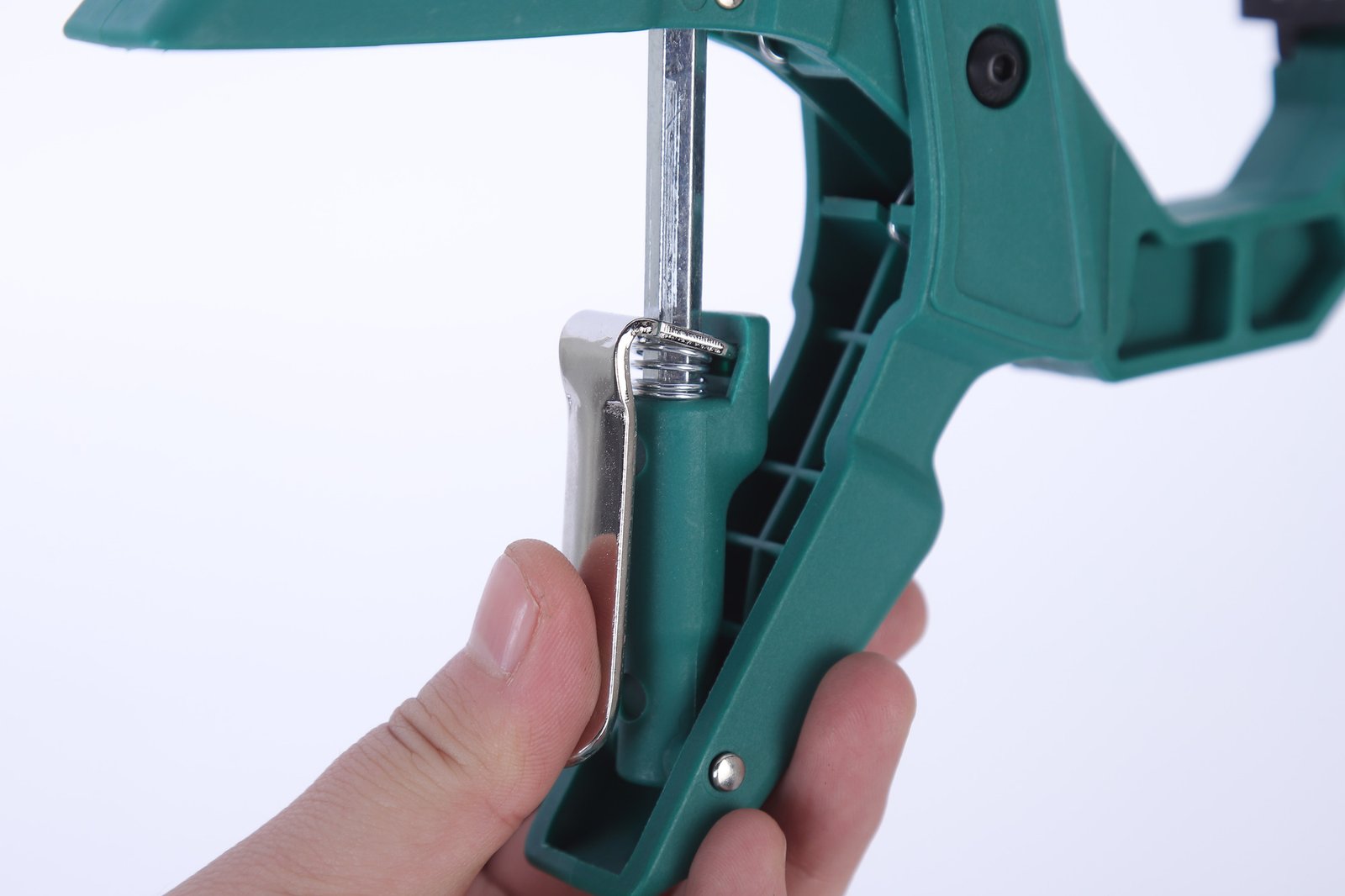

Steel spring – holds the jaws closed for one-hand use

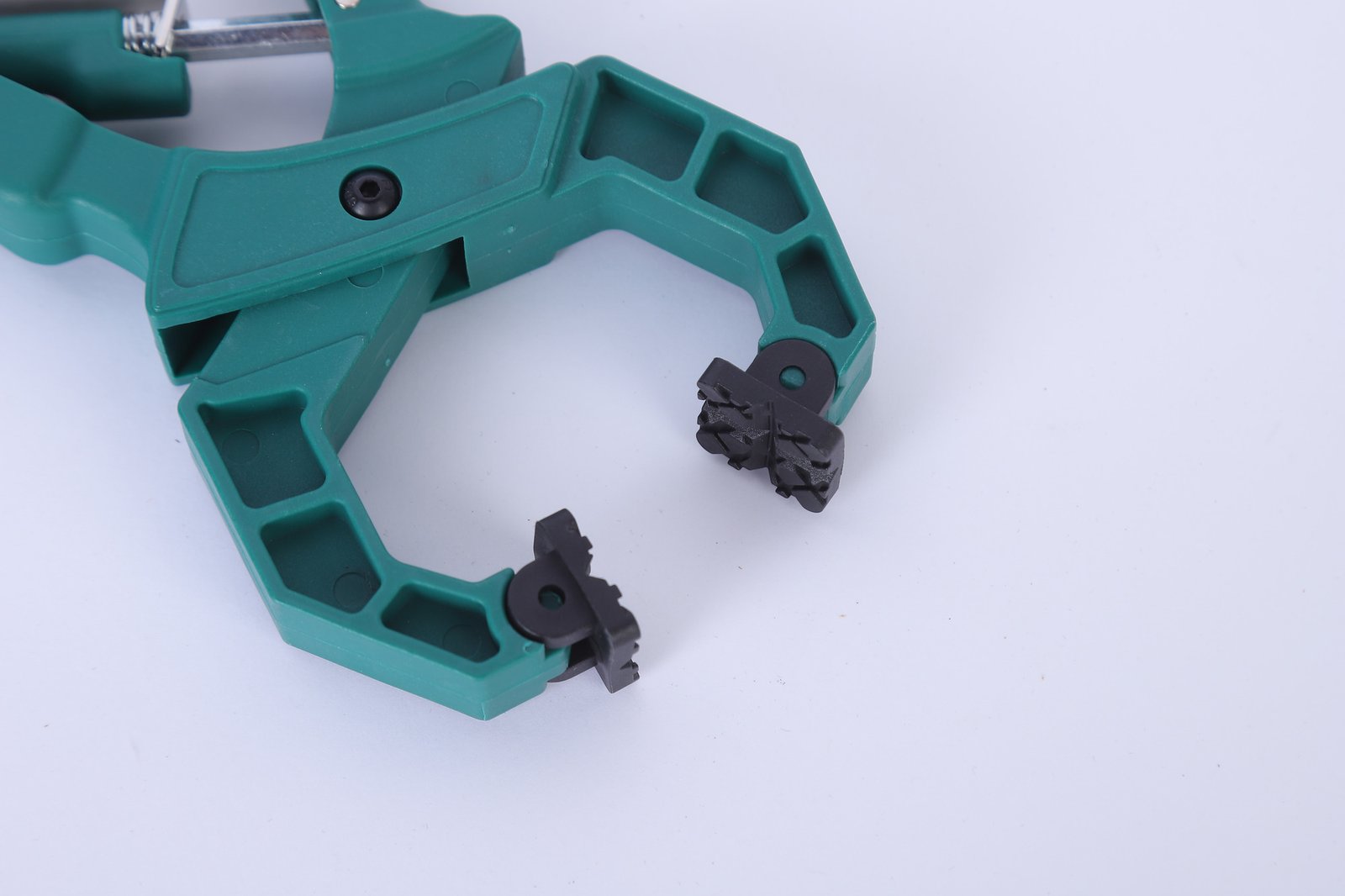

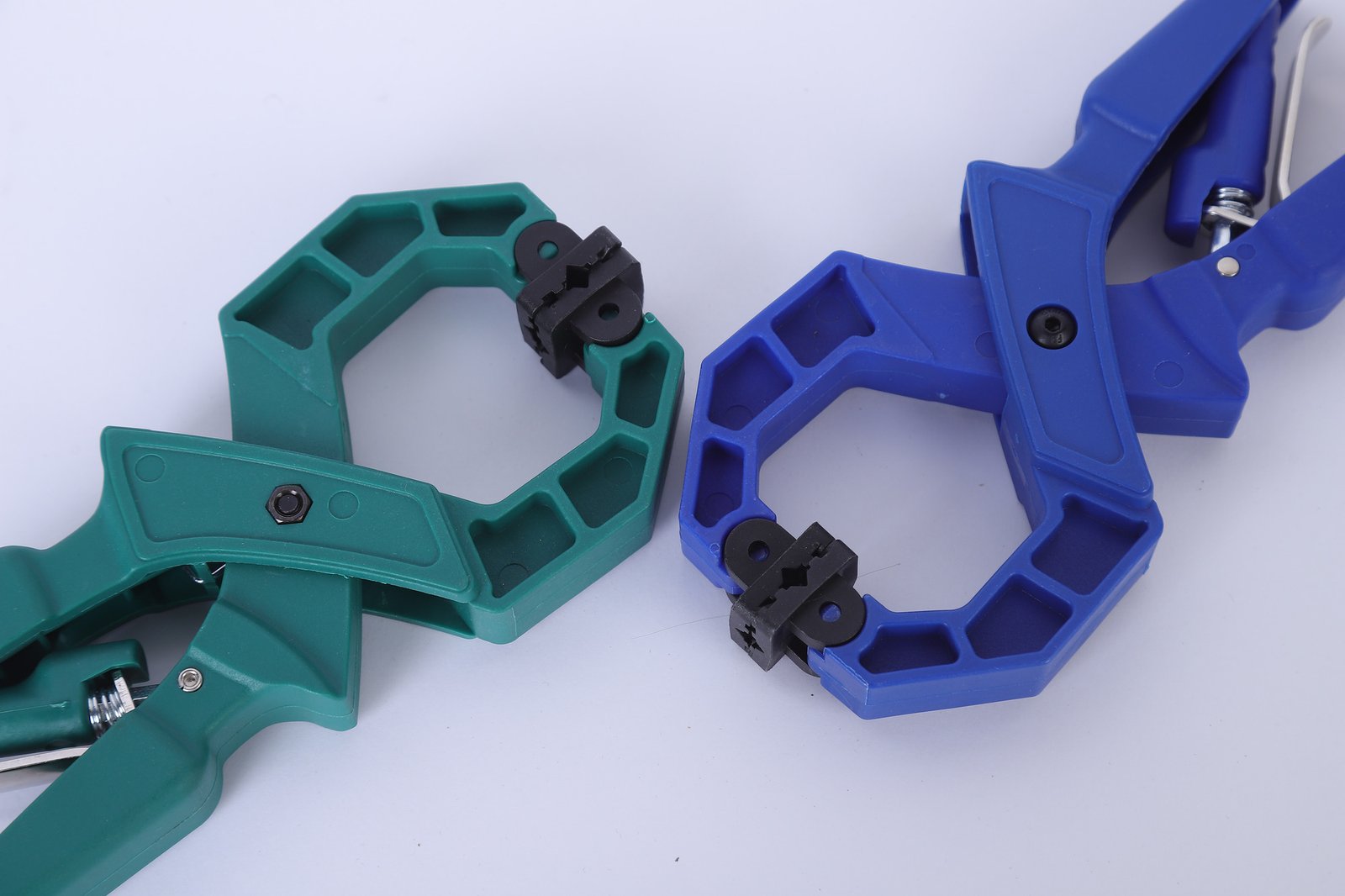

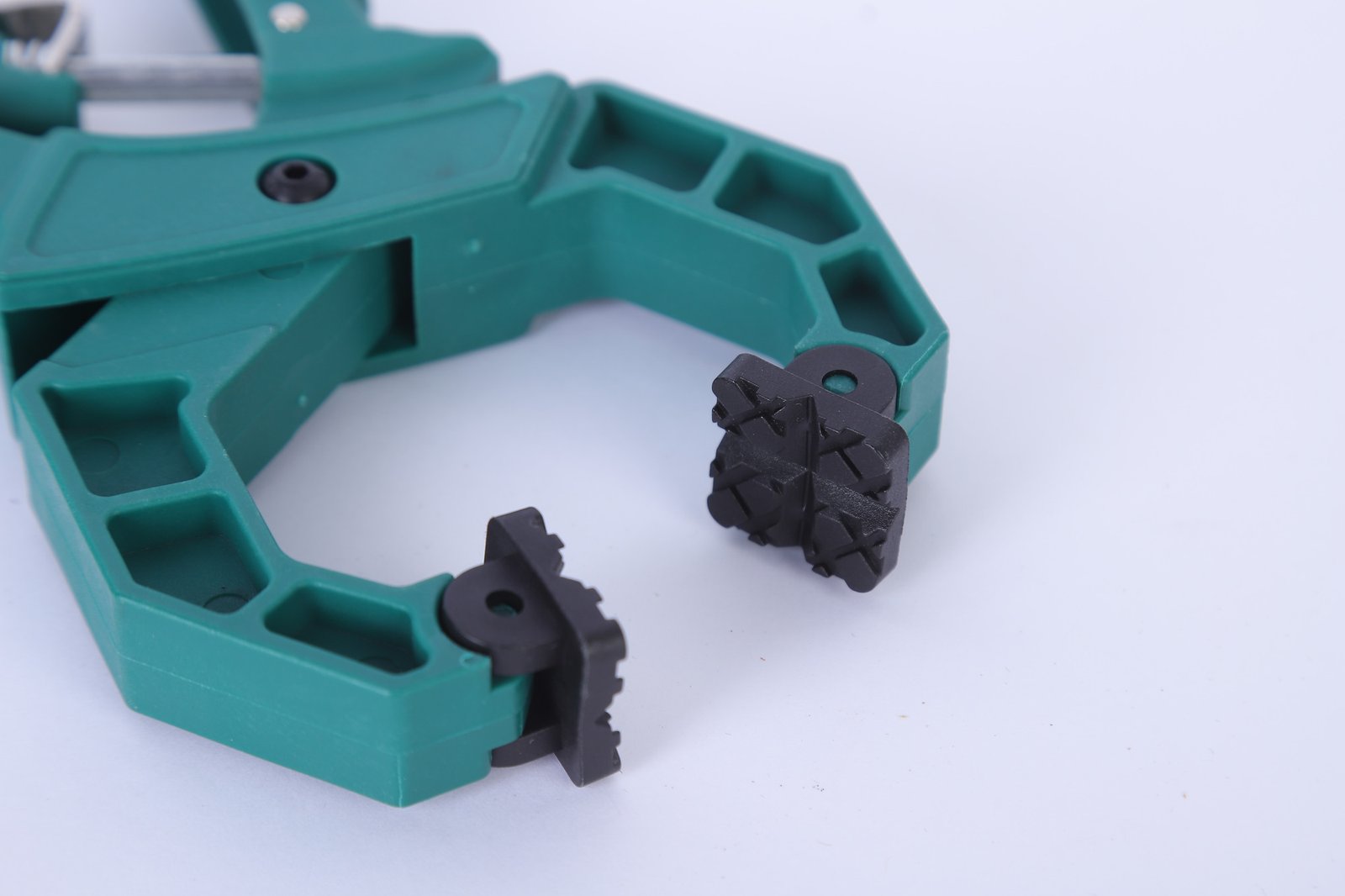

Close view of the rib-reinforced nylon body and swivel jaw pads on a Wildleg ratchet A-clamp.

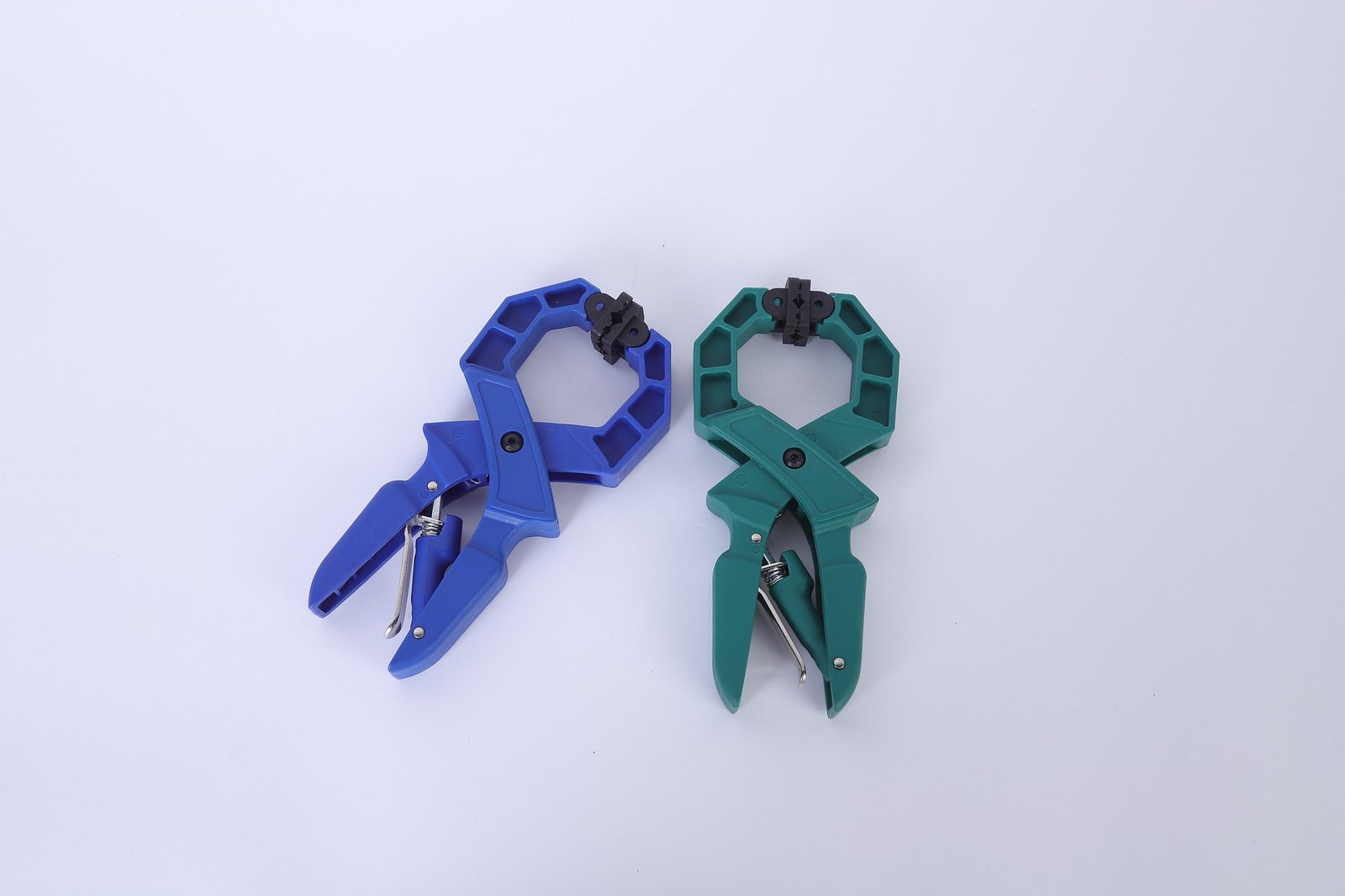

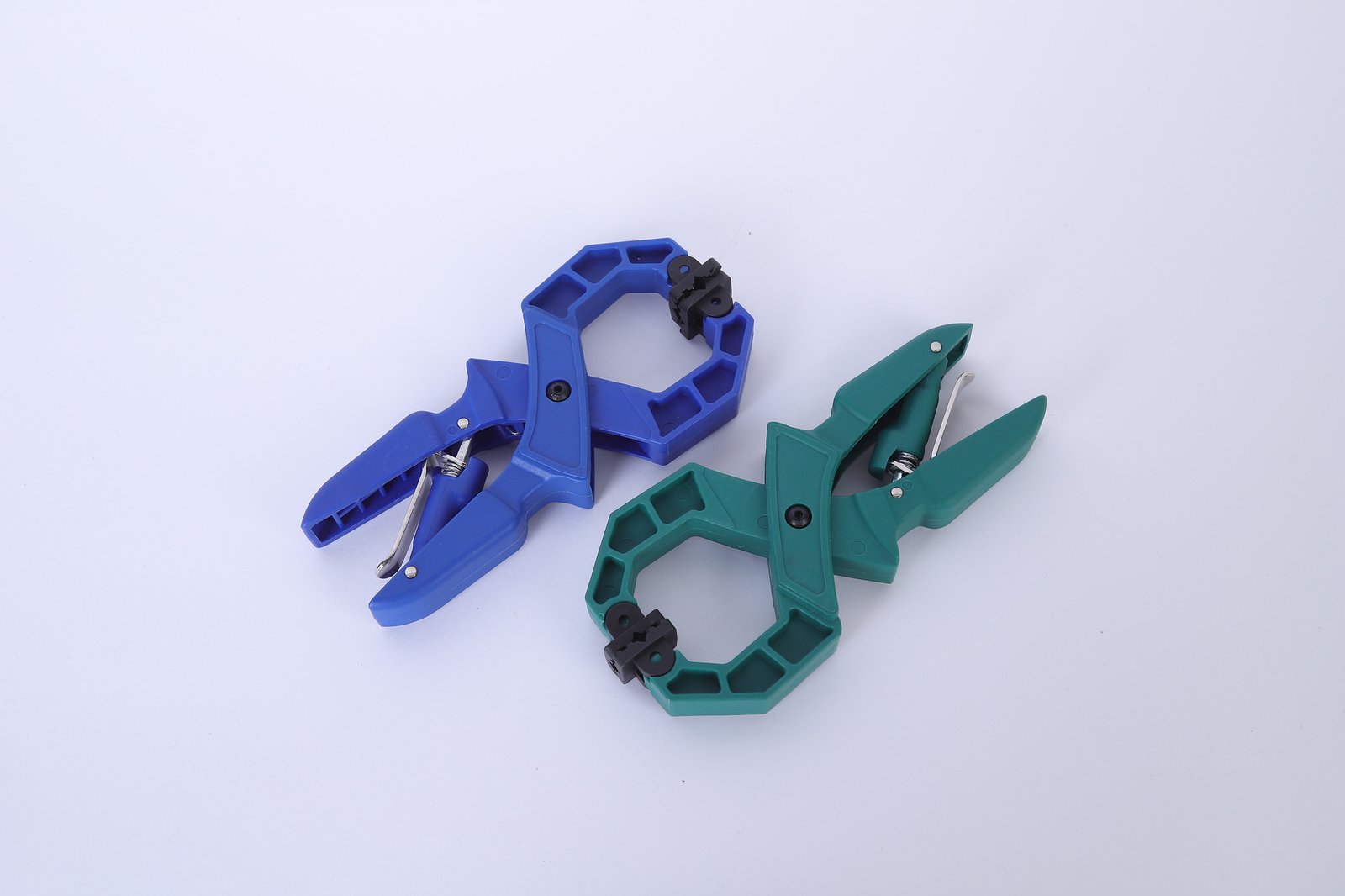

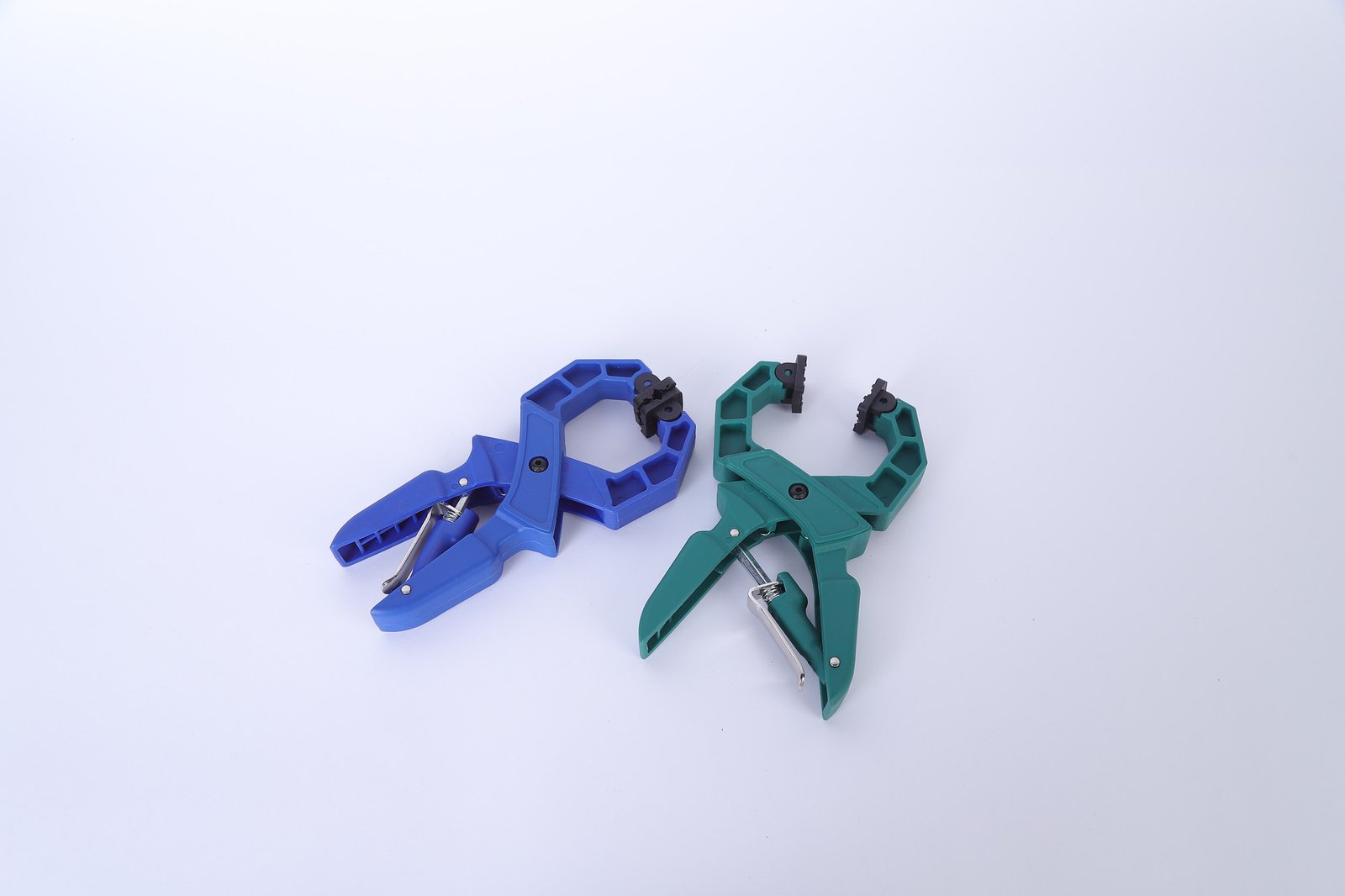

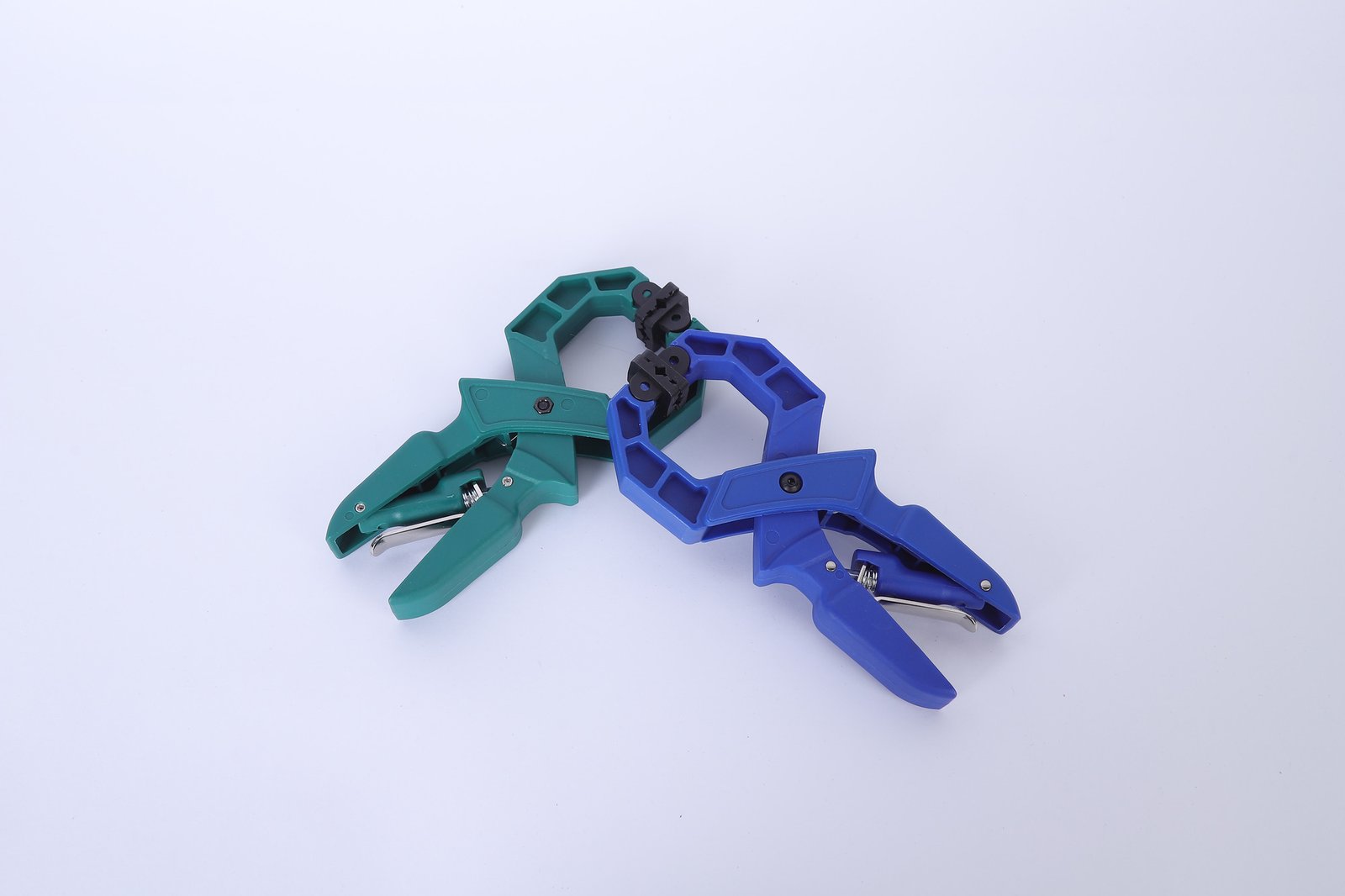

A blue and a green Wildleg ratchet A-clamp side by side on a white background.

Colours

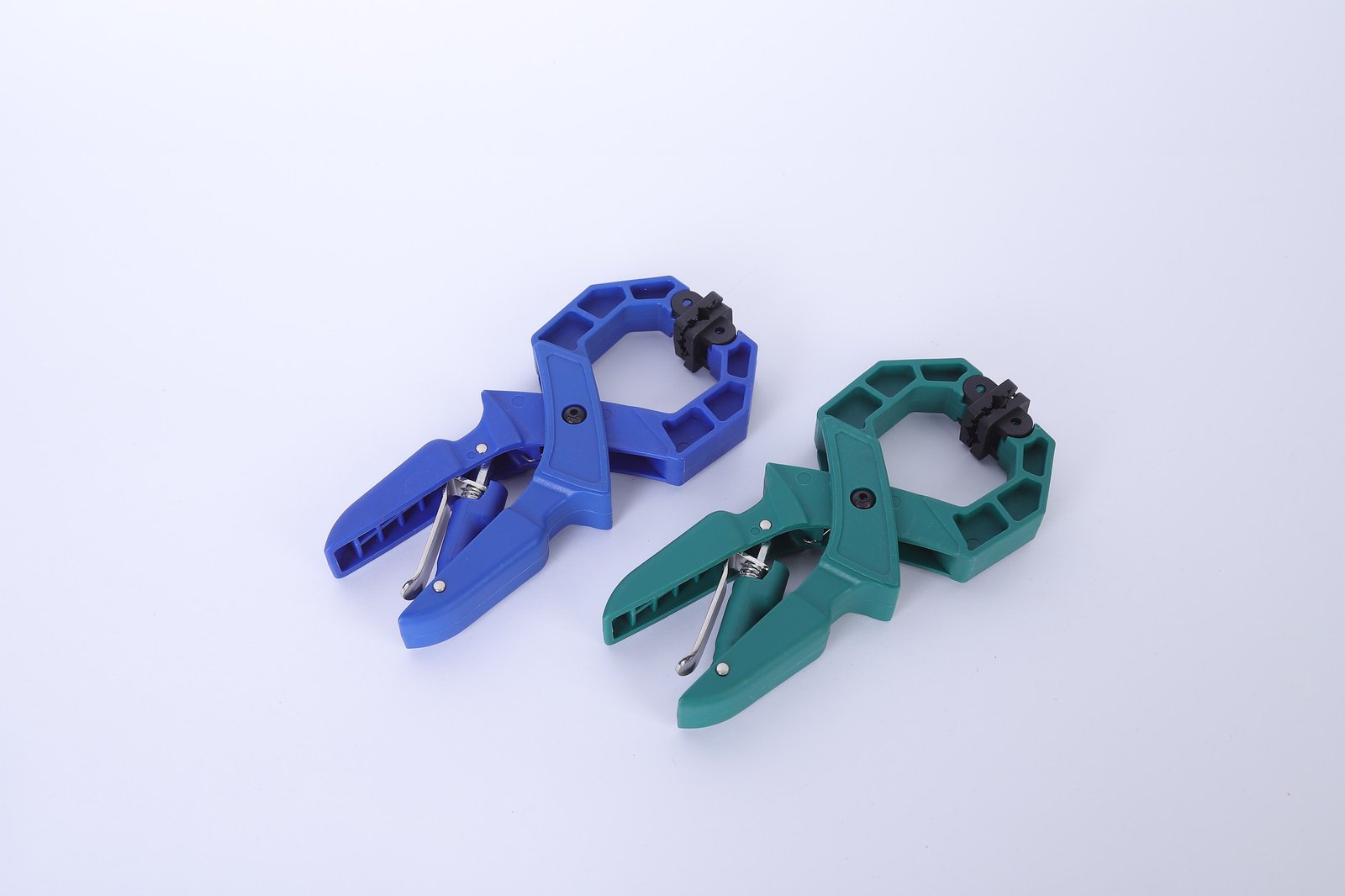

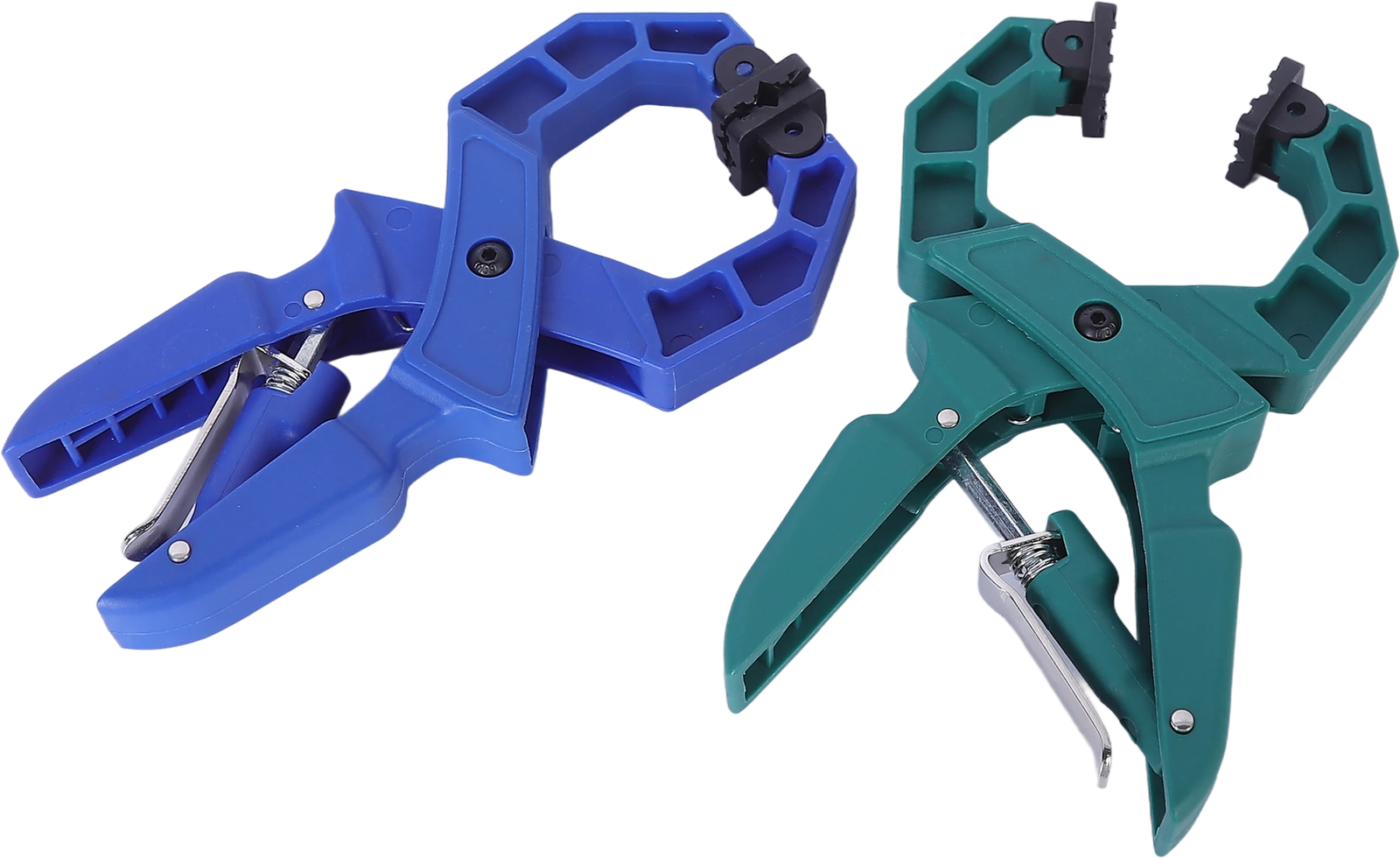

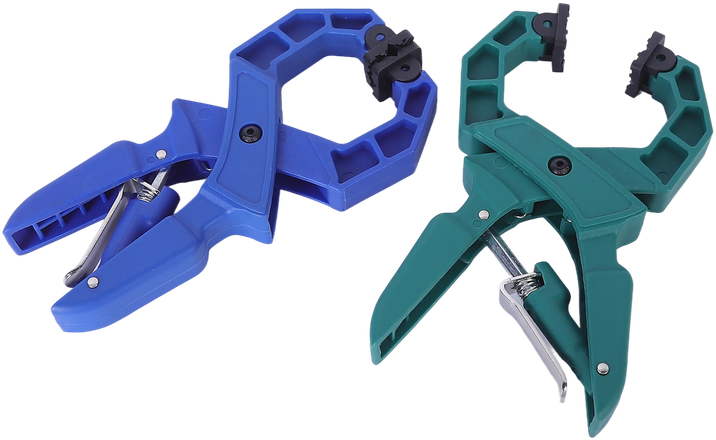

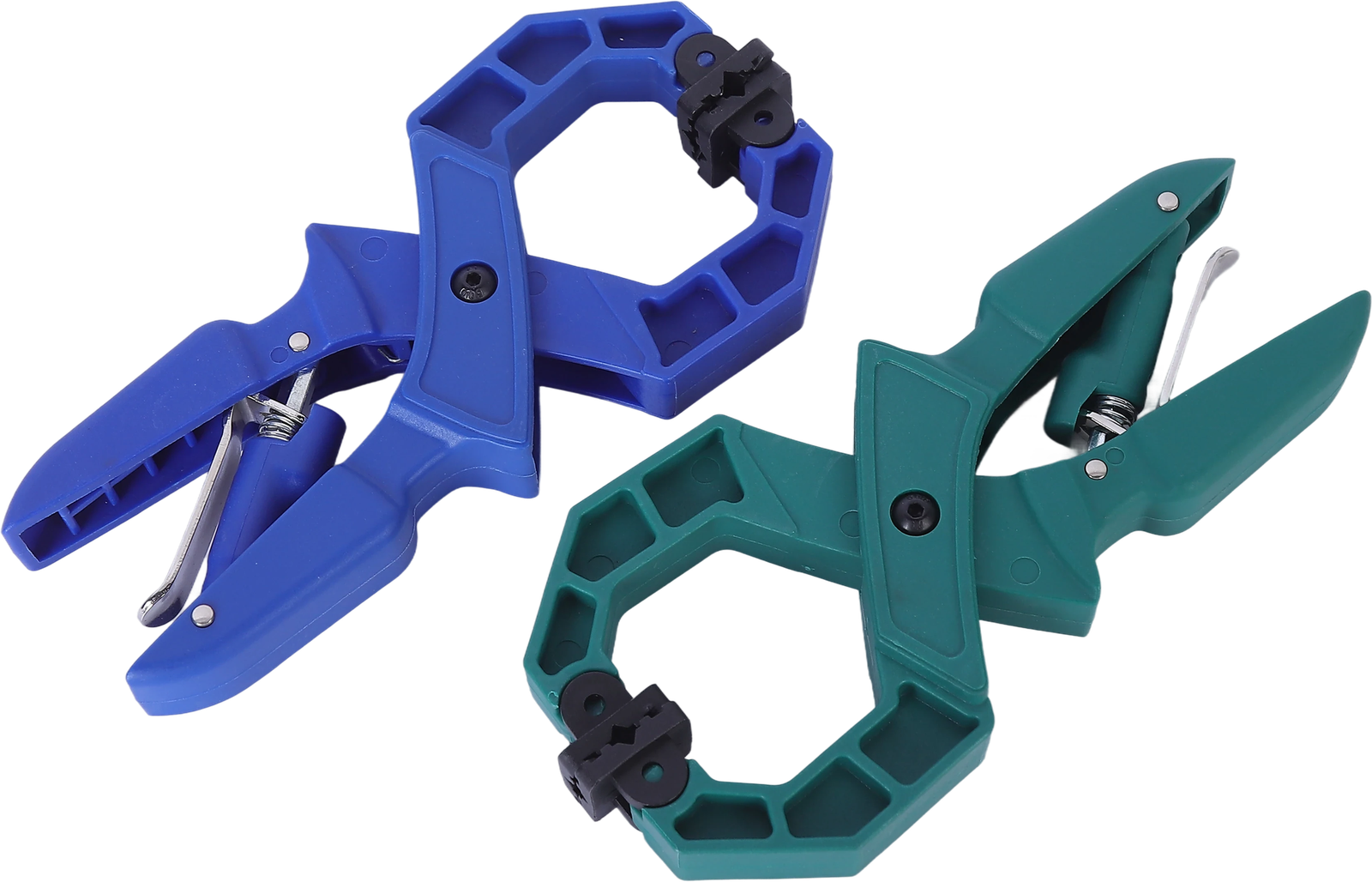

Two Wildleg ratchet A-clamps, one blue and one green, showing the ribbed nylon body, swivel jaw pads and steel spring.

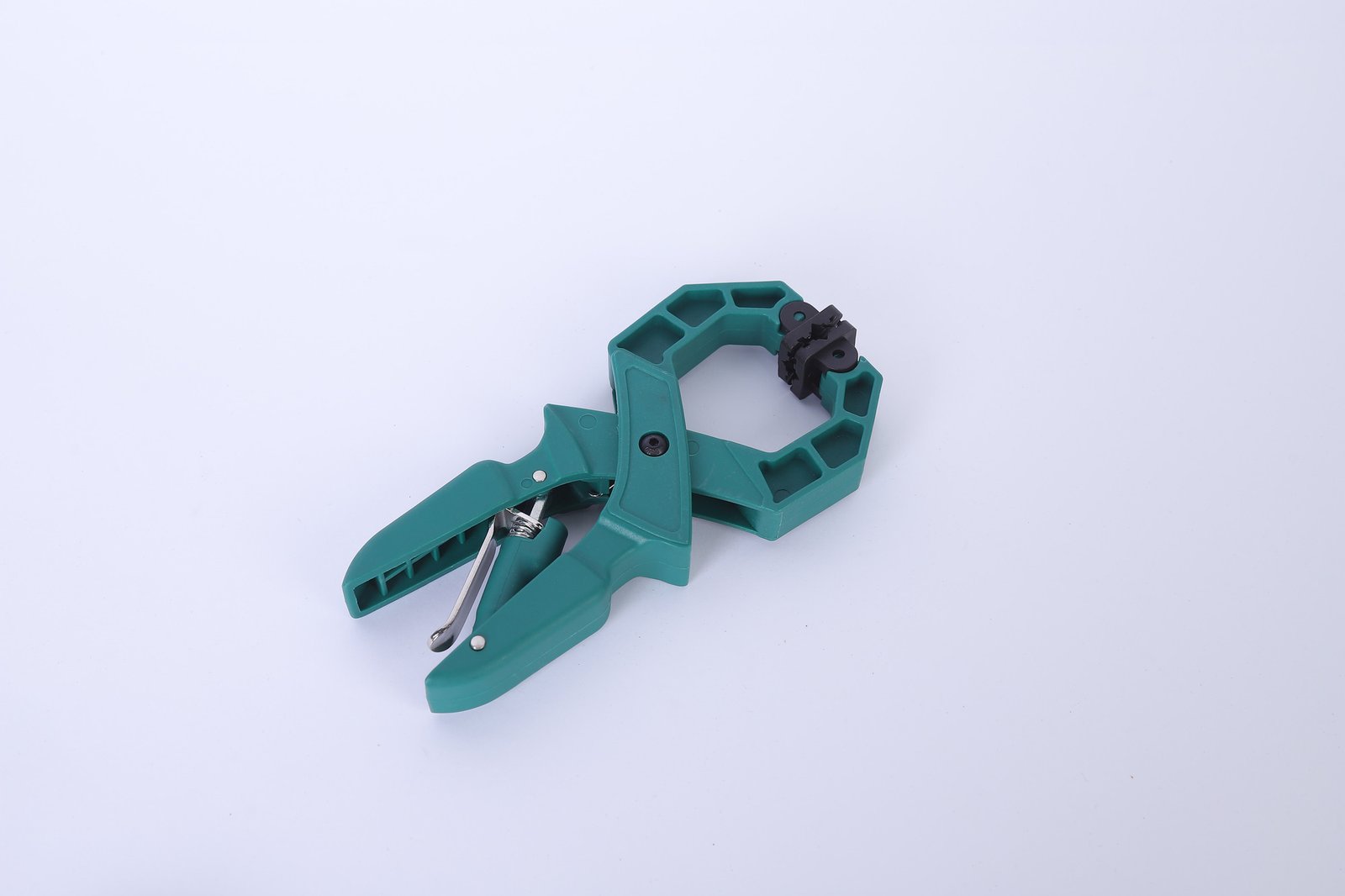

A single green Wildleg ratchet A-clamp on a white background, showing the ribbed nylon body, jaw pads and steel spring.

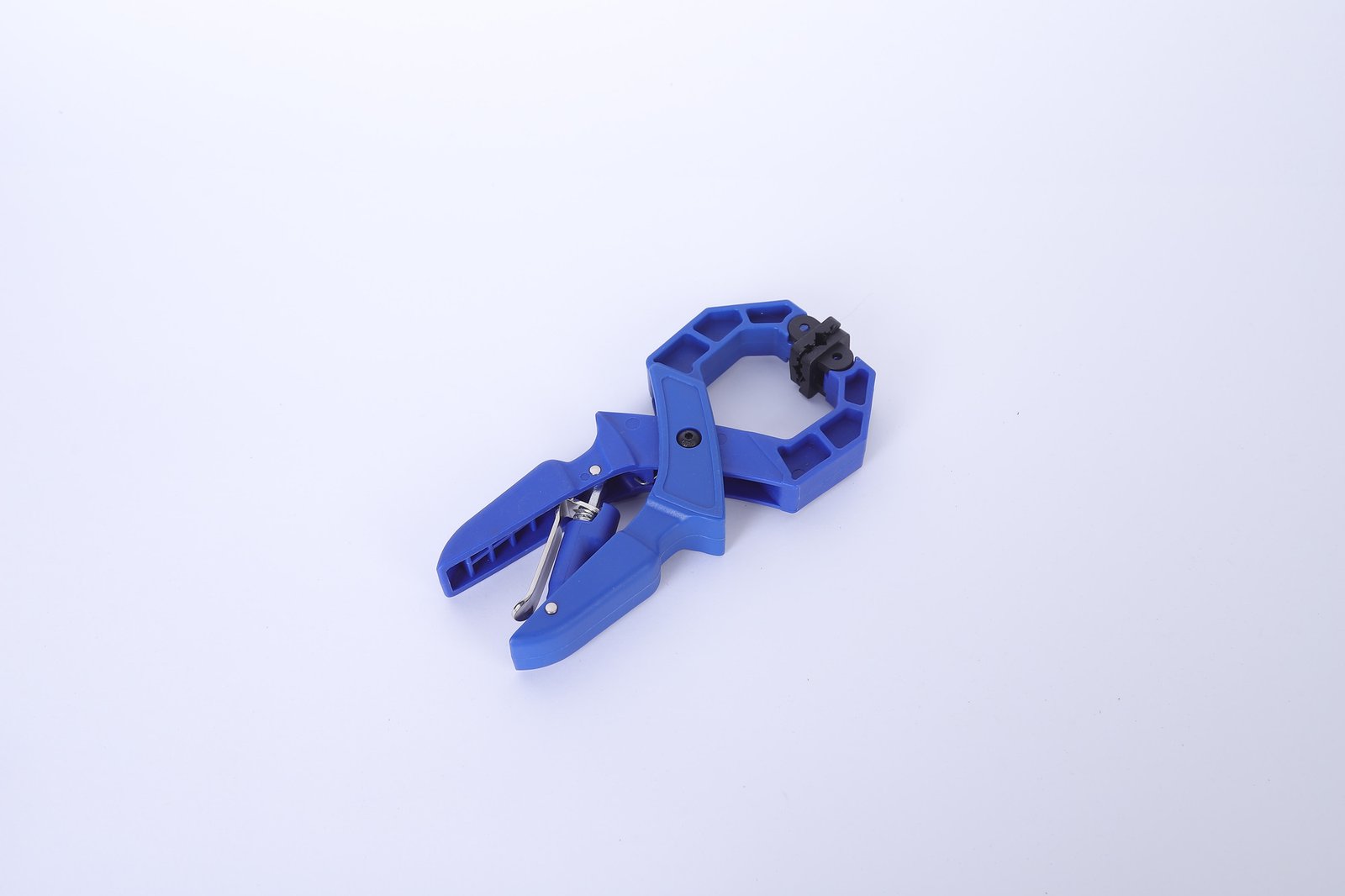

A single blue Wildleg ratchet A-clamp on a white background, showing the ribbed nylon body, jaw pads and steel spring.

Blue and green are standard. Other colours are available to order as part of an OEM programme.

Private label and OEM

Custom body colour – any colour to your specification
Laser marking – permanent, no ink, suits the dark nylon body
Screen printing – lower unit cost at high volumes

Send a drawing or a sample and we will confirm before production. Customer colours and packaging artwork are not shown in public and are not offered to other buyers.

Minimum order and lead time

MOQ: 20 cartons per size. Because carton quantities differ by size, the piece count per order varies — 20 cartons is 4,000 pieces of the 4″ clamp and 360 pieces of the 36″ clamp. Mixed sizes are accepted; tell us your size split and we will confirm.

Lead time is confirmed with the quotation, as it depends on order volume and on whether the order includes custom colour or marking.

Smaller trial orders can be discussed for a first shipment.

Request a quotation

Send us the size, quantity, colour and destination port. We reply with a quotation and a confirmed lead time. Lead time depends on order volume, so we confirm it together with the quotation.
