F-clamp

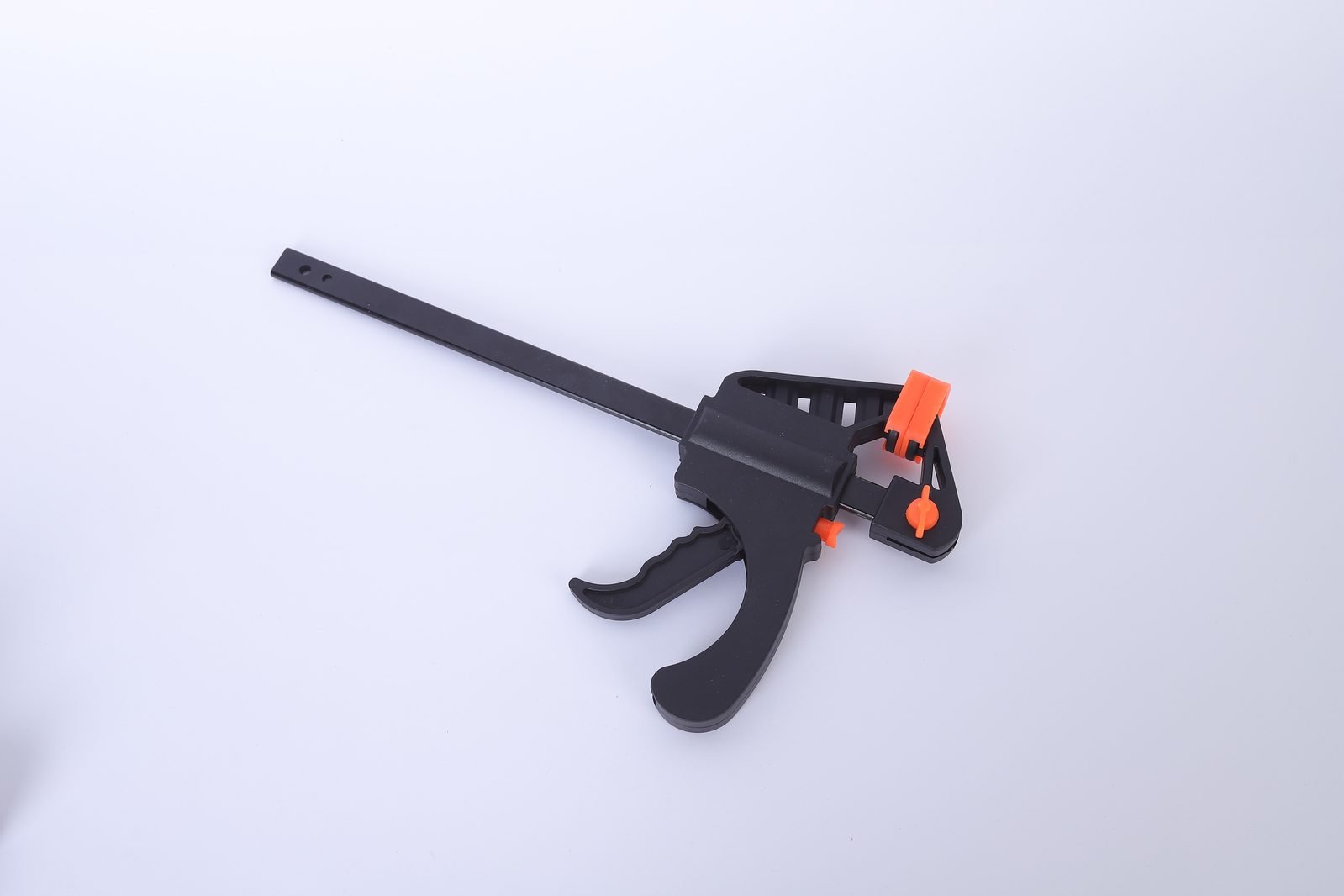

A one-hand trigger bar clamp for woodworking, cabinetry and furniture assembly. Nine sizes from 4 inch to 36 inch. Each clamp can be reversed so it spreads instead of clamping.
Specifications
Length, rod diameter, clamping range, counter range and throat depth for every size. The 4 inch model uses a 45# carbon steel rod; the larger sizes use an 18 mm A3 steel rod.
| Size | Length | Rod dia. | Clamping range | Counter range | Throat depth | Rod material |
|---|---|---|---|---|---|---|
| 4″ | 200 mm | 8 mm | 0-105 mm | 0-210 mm | 34 mm | 45# carbon steel |
| 6″ | 320 mm | 18 mm | 0-150 mm | 0-330 mm | 63 mm | A3 steel |
| 8″ | 375 mm | 18 mm | 0-200 mm | 0-360 mm | 63 mm | A3 steel |
| 10″ | 420 mm | 18 mm | 0-250 mm | 0-410 mm | 63 mm | A3 steel |
| 12″ | 475 mm | 18 mm | 0-300 mm | 0-460 mm | 63 mm | A3 steel |
| 18″ | 630 mm | 18 mm | 0-455 mm | 0-610 mm | 63 mm | A3 steel |
| 24″ | 770 mm | 18 mm | 0-600 mm | 0-760 mm | 63 mm | A3 steel |
| 30″ | 930 mm | 18 mm | 0-750 mm | 0-910 mm | 63 mm | A3 steel |
| 36″ | 1080 mm | 18 mm | 0-900 mm | 0-1000 mm | 63 mm | A3 steel |
Packing data
Unit weight, carton quantity, net and gross weight, carton dimensions and volume for each size. Use the CBM column to calculate how many cartons fit in a 20 ft or 40 ft container.
| Size | Unit weight | Pcs / carton | N.W. (kg) | G.W. (kg) | Carton (cm) | CBM |
|---|---|---|---|---|---|---|
| 4″ | 70 g | 200 | 14.0 | ~15.0 | 38 x 21 x 40.5 | 0.0323 |
| 6″ | 437 g | 48 | 21.0 | 22.2 | 33 x 40 x 31 | 0.041 |
| 8″ | 475 g | 48 | 22.8 | 24.1 | 38 x 40 x 31 | 0.047 |
| 10″ | 505 g | 36 | 18.2 | 19.5 | 43 x 40 x 23.5 | 0.041 |
| 12″ | 550 g | 36 | 19.8 | 20.5 | 48.5 x 40 x 23.5 | 0.0456 |
| 18″ | 660 g | 24 | 15.8 | 16.6 | 63.5 x 40 x 16 | 0.041 |
| 24″ | 770 g | 24 | 18.5 | 19.3 | 78 x 40 x 16 | 0.05 |
| 30″ | 890 g | 18 | 16.0 | 16.6 | 94 x 21 x 23.5 | 0.046 |
| 36″ | 1020 g | 18 | 18.4 | 18.6 | 109 x 21 x 23.5 | 0.0538 |
How it works

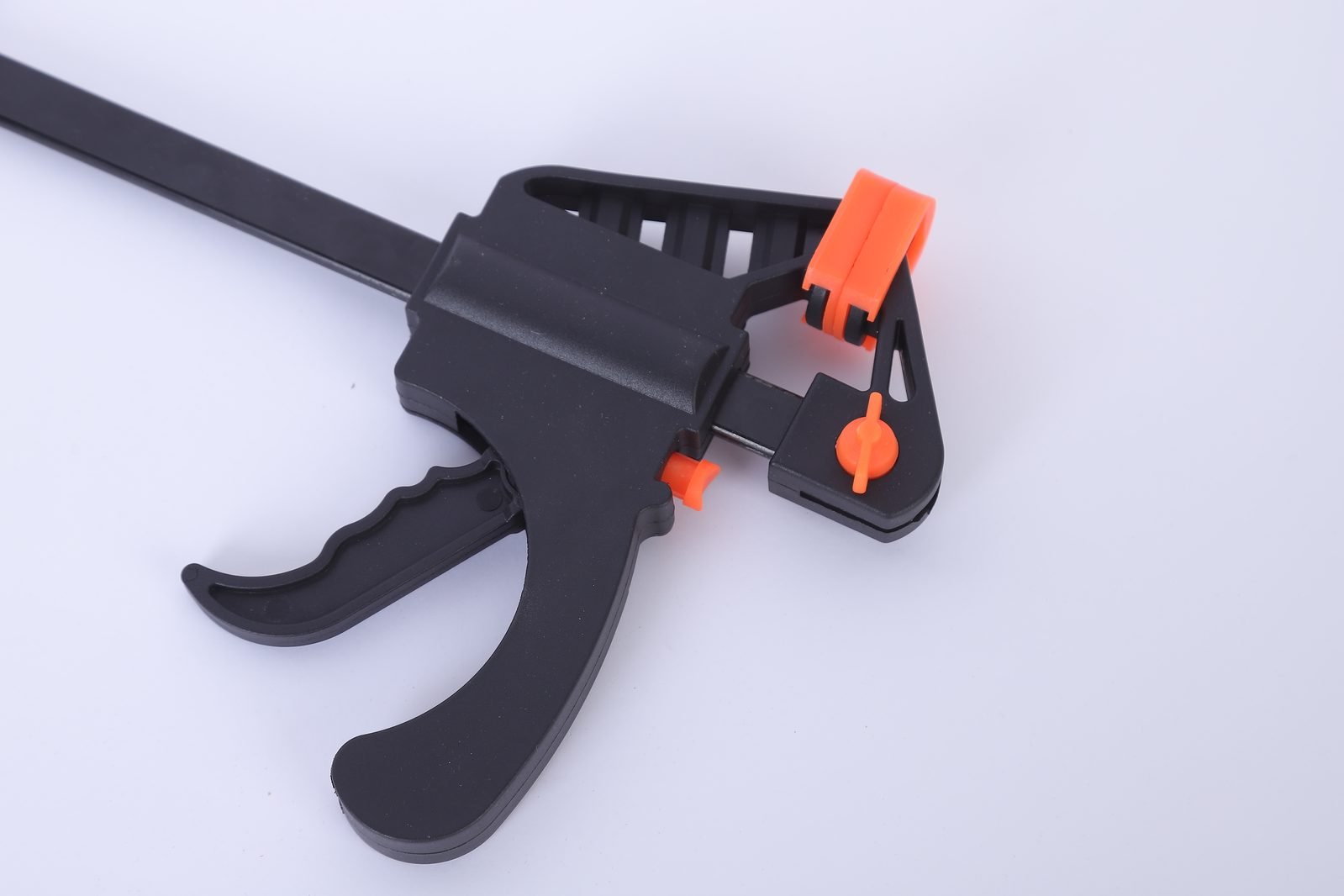

- Trigger release – squeeze the trigger to advance the jaw; press the release lever to open it with one hand
- Quick-slide button – moves the jaw along the bar to the workpiece

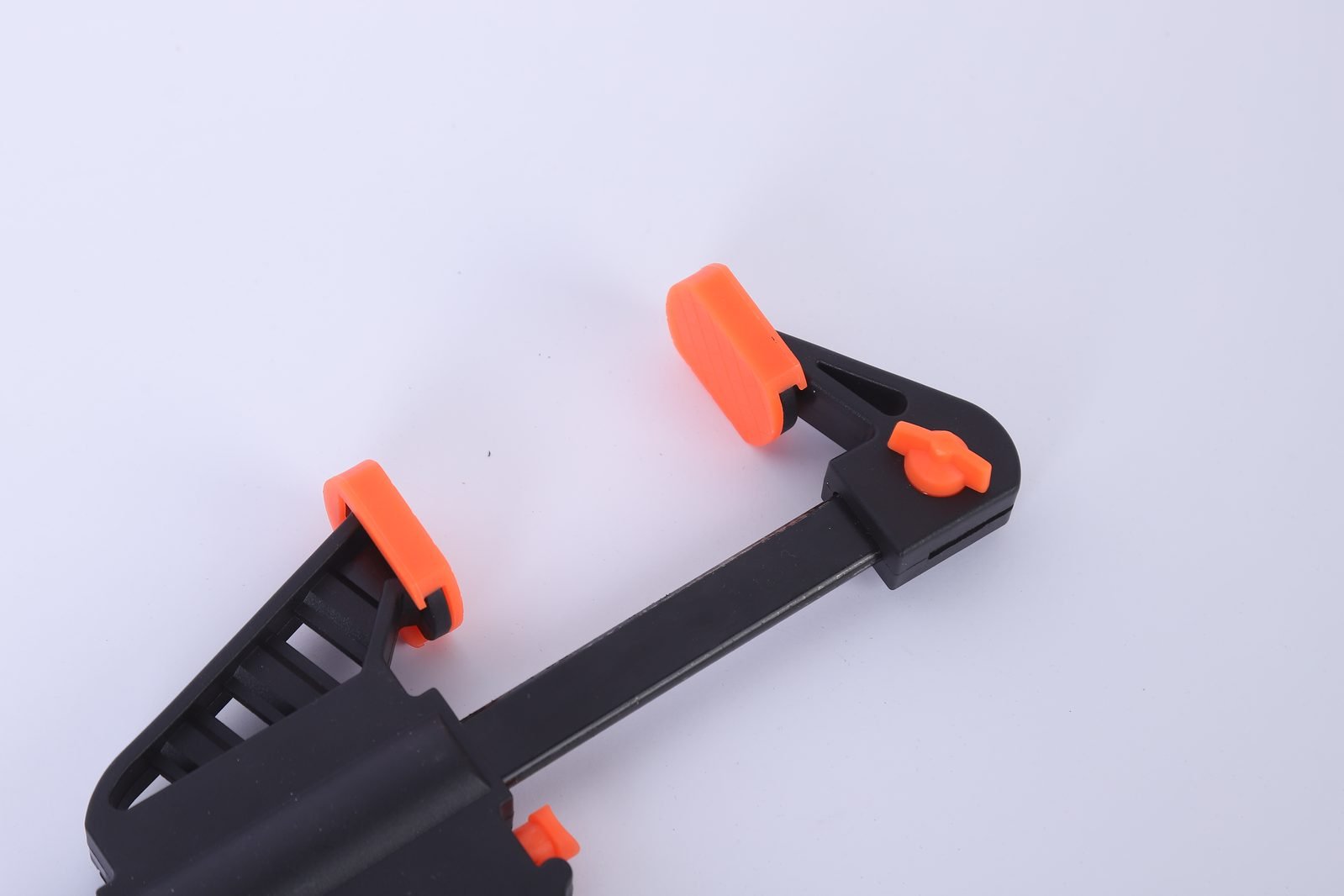

- Adjustable jaw screw – fine adjustment for light or uneven clamping
- Clamp or spread – reverse the jaw assembly and the clamp pushes apart, for mitre joints and frames
- PE jaw pads – protect the workpiece from marks
Materials and construction
| Bar / rod | 4 inch: 45# carbon steel, 8 mm. 6 inch to 36 inch: A3 steel, 18 mm |
|---|---|
| Body and handle | Nylon with internal and external rib reinforcement |
| Jaw pads | PE (polyethylene) |
| Packaging | OPP bag, then export carton |

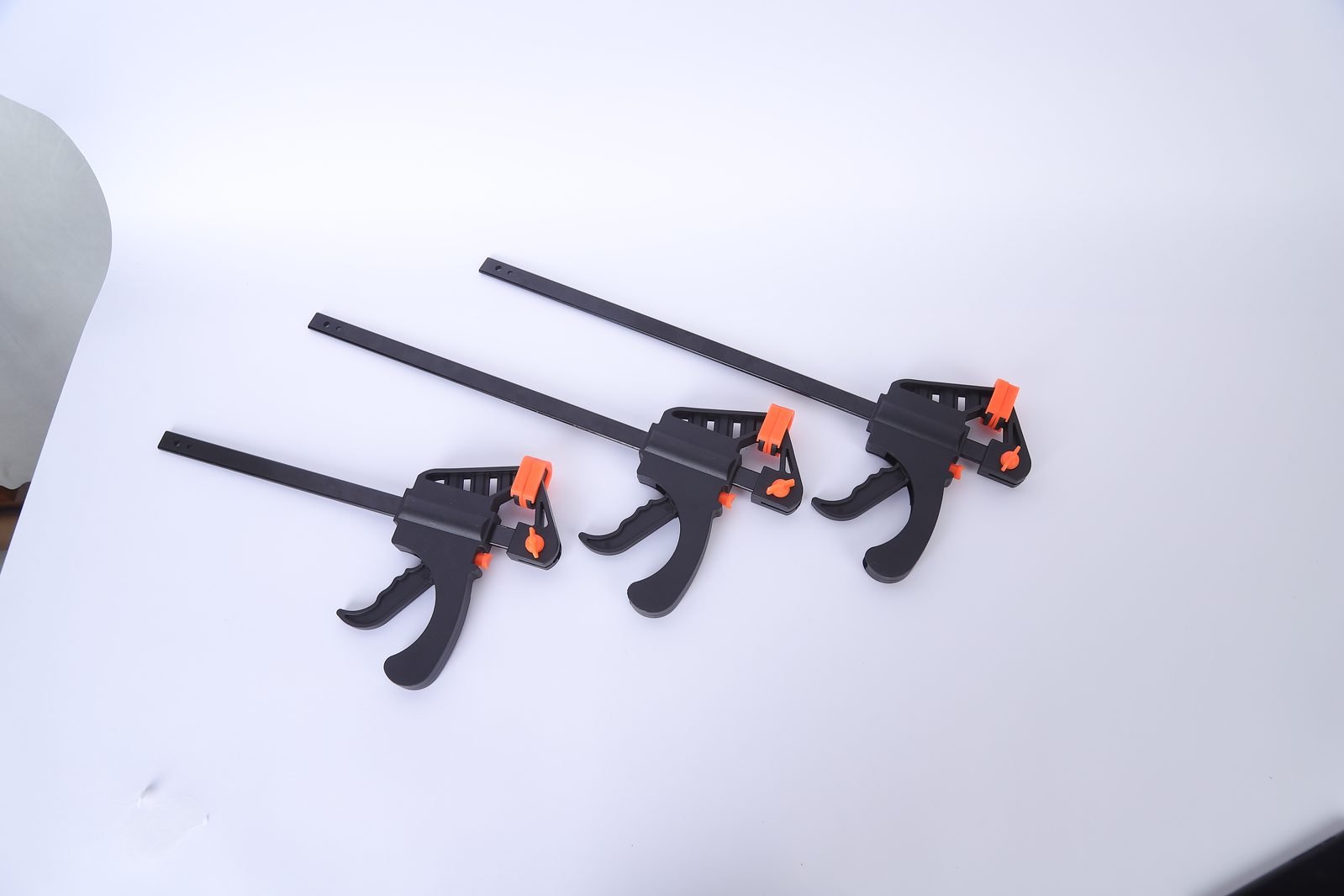

Size range
Private label and OEM
- Custom body colour – any colour to your specification
- Laser marking – permanent, no ink, suits the dark nylon body
- Screen printing – lower unit cost at high volumes
Send a drawing or a sample and we will confirm before production. Customer colours and packaging artwork are not shown in public and are not offered to other buyers.
Minimum order and lead time
MOQ: 20 cartons per size. Because carton quantities differ by size, the piece count per order varies — 20 cartons is 4,000 pieces of the 4″ clamp and 360 pieces of the 36″ clamp. Mixed sizes are accepted; tell us your size split and we will confirm.
Lead time is confirmed with the quotation, as it depends on order volume and on whether the order includes custom colour or marking.
Smaller trial orders can be discussed for a first shipment.
Request a quotation
Send us the size, quantity, colour and destination port. We reply with a quotation and a confirmed lead time. Lead time depends on order volume, so we confirm it together with the quotation.
