Trigger bar clamp
| Item No. | 11004 |
|---|---|
| Name | Trigger bar clamp |
| Support OEM | Yes |
| Material | Nylon body, red grips |
| Sizes | 6", 8", 10", 12", 18", 24", 36" |
| Throat depth | 70 mm on every size |
| Spreader range | 157 mm to 1110 mm depending on size |
| Weight | 500 g (6") to 1025 g (36") |
| Operation | Trigger advance, reversible rear jaw |
| Application | Panel glue-ups, door and window frames, cabinet carcasses |
| MOQ | 20 cartons total, mixed sizes accepted |
A trigger clamp that also spreads
The trigger bar clamp is a one-hand clamp with a nylon body and a black bar. Squeeze the trigger to advance the front jaw in small steps and it locks where you stop. The rear jaw turns around on the bar, so the same tool works as a spreader — the function you need when a door frame or a cabinet carcass has to be pushed apart and held.

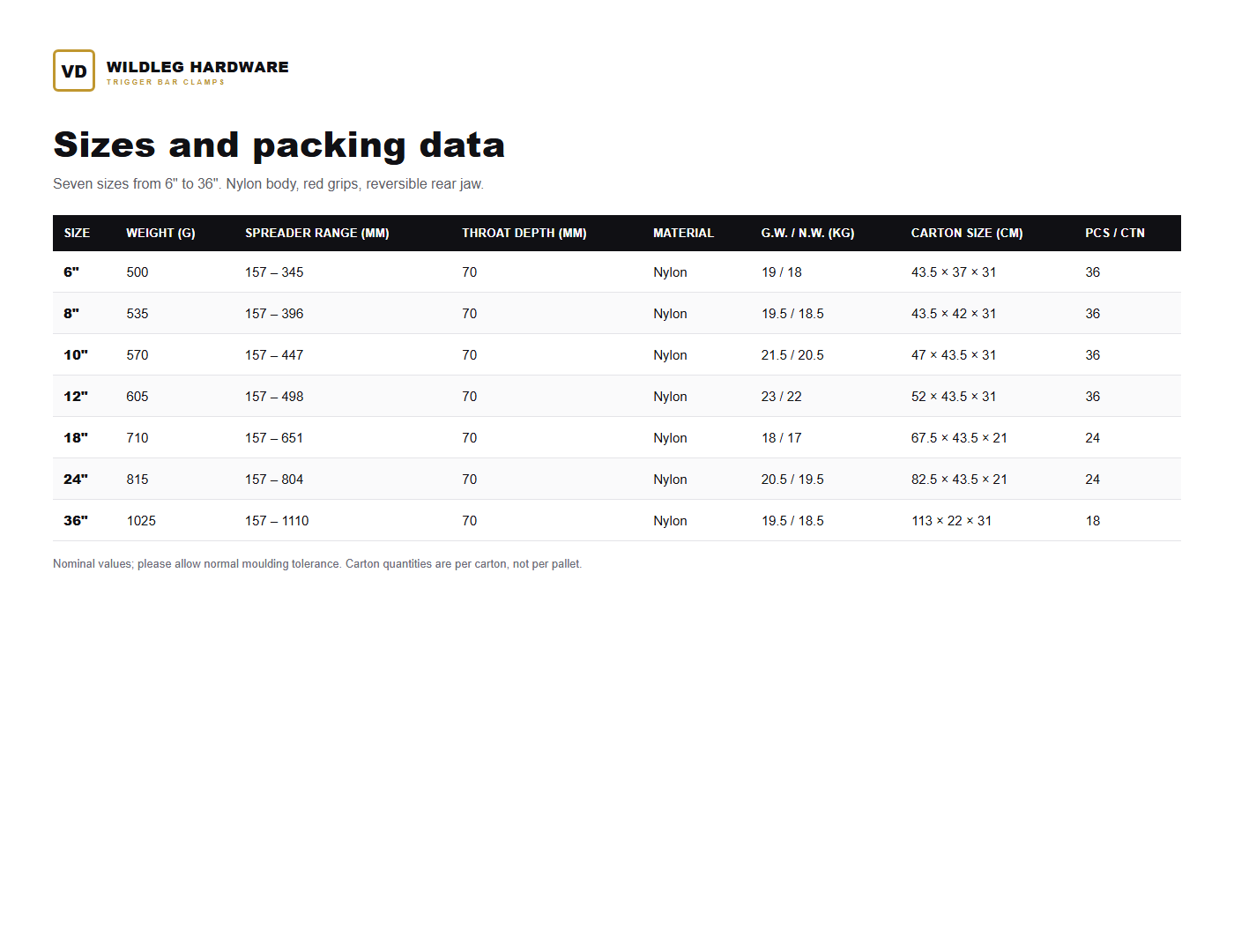

Specifications and packing data
| Size | Weight | Spreader range | Throat depth | Material | G.W. / N.W. | Carton size | Pcs / ctn |
|---|---|---|---|---|---|---|---|
| 6" | 500 g | 157 – 345 mm | 70 mm | Nylon | 19 / 18 kg | 43.5 × 37 × 31 cm | 36 |
| 8" | 535 g | 157 – 396 mm | 70 mm | Nylon | 19.5 / 18.5 kg | 43.5 × 42 × 31 cm | 36 |
| 10" | 570 g | 157 – 447 mm | 70 mm | Nylon | 21.5 / 20.5 kg | 47 × 43.5 × 31 cm | 36 |
| 12" | 605 g | 157 – 498 mm | 70 mm | Nylon | 23 / 22 kg | 52 × 43.5 × 31 cm | 36 |
| 18" | 710 g | 157 – 651 mm | 70 mm | Nylon | 18 / 17 kg | 67.5 × 43.5 × 21 cm | 24 |
| 24" | 815 g | 157 – 804 mm | 70 mm | Nylon | 20.5 / 19.5 kg | 82.5 × 43.5 × 21 cm | 24 |
| 36" | 1025 g | 157 – 1110 mm | 70 mm | Nylon | 19.5 / 18.5 kg | 113 × 22 × 31 cm | 18 |
Clamp and spread
Reverse the rear jaw and the clamp pushes instead of pulls. The knurled red knob on the rear jaw is what you turn to release it.
Trigger action, stable hold
- One-hand operation — the trigger advances the jaw, the release lever lets it slide back
- 70 mm throat depth on every size, so the bar clears the workpiece
- Nylon body with red grips — light enough to hang on a rail, tough enough for daily use
- Seven sizes from 6" to 36" on one bar design, so a distributor can stock one family instead of four
Packing
Cartons are sized per length: 43.5 × 37 × 31 cm for the 6" model at 36 pieces per carton, up to 113 × 22 × 31 cm for the 36" model at 18 pieces. Gross and net weights are shown in the table above.
Registered designs
Two Chinese design patents cover the appearance of our F-clamp and ratchet A-clamp ranges: ZL 2025 3 0024613.8 and ZL 2025 3 0024614.2. This trigger bar clamp is not covered by those registrations, and we do not claim that it is.
Private label and OEM
- Moulded body colour
- Grip colour
- Laser marking and screen printing
