Products

Two clamp families, both made at our factory in Linyi, Shandong. Prices are quoted per order; send us the size, quantity and destination port.

Trigger bar clamp (F-clamp)

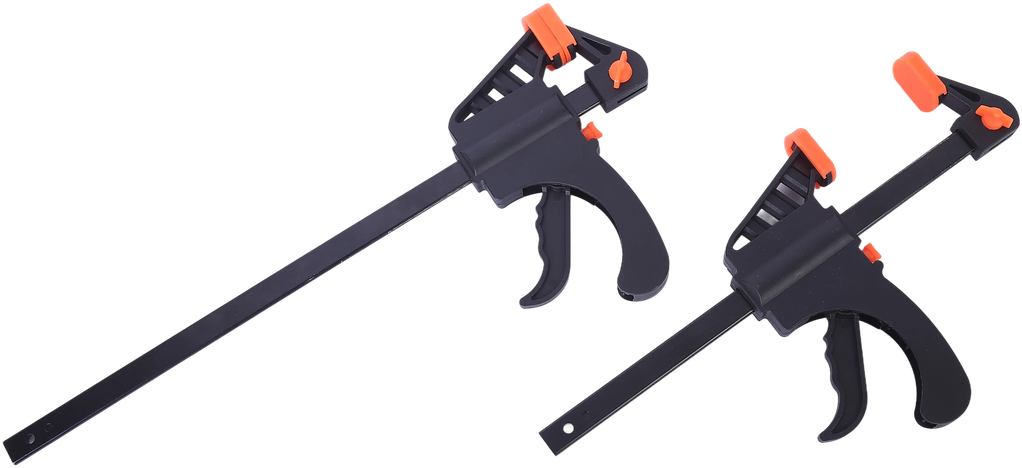

Two Wildleg trigger bar clamps of different lengths, showing the steel bar, black nylon body and orange trigger.

Nine sizes from 4 inch to 36 inch. One-hand trigger release, nylon body with rib reinforcement, PE jaw pads, and each clamp reverses into a spreader. The 4 inch model uses a 45# carbon steel rod; the larger sizes use an 18 mm A3 steel rod.

Full specifications and packing data for the trigger bar clamp

Size	Length	Rod dia.	Clamping range	Counter range	Throat depth	Rod material
4″	200 mm	8 mm	0-105 mm	0-210 mm	34 mm	45# carbon steel
6″	320 mm	18 mm	0-150 mm	0-330 mm	63 mm	A3 steel
8″	375 mm	18 mm	0-200 mm	0-360 mm	63 mm	A3 steel
10″	420 mm	18 mm	0-250 mm	0-410 mm	63 mm	A3 steel
12″	475 mm	18 mm	0-300 mm	0-460 mm	63 mm	A3 steel
18″	630 mm	18 mm	0-455 mm	0-610 mm	63 mm	A3 steel
24″	770 mm	18 mm	0-600 mm	0-760 mm	63 mm	A3 steel
30″	930 mm	18 mm	0-750 mm	0-910 mm	63 mm	A3 steel
36″	1080 mm	18 mm	0-900 mm	0-1000 mm	63 mm	A3 steel

Reference values only; final specifications are subject to actual measurement.

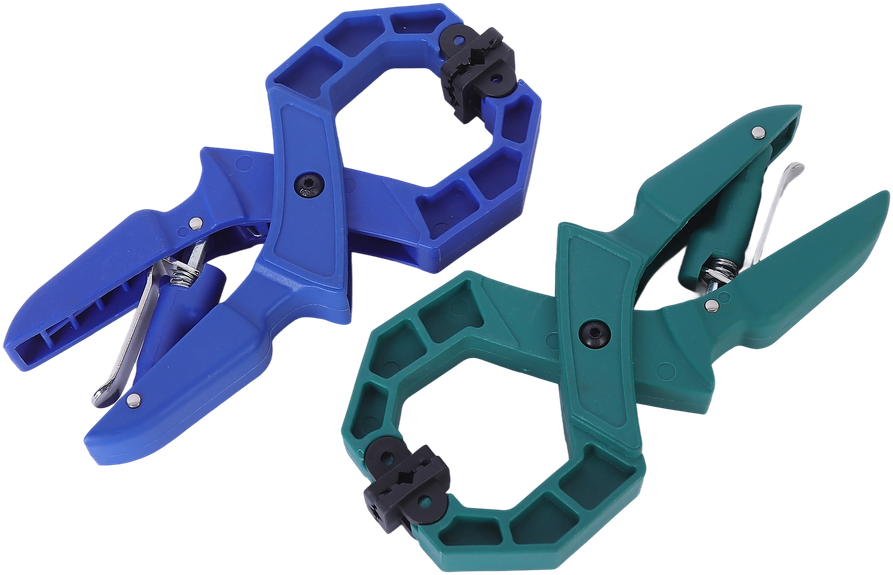

Ratchet A-clamp

200 mm one-hand clamp with a 50 mm clamping range and a glass-fibre reinforced nylon body. Standard colours blue and green, other colours to order.

Full specifications and packing data for the ratchet A-clamp

Packing data – trigger bar clamps

Size	Unit weight	Pcs / carton	N.W. (kg)	G.W. (kg)	Carton (cm)	CBM
4″	70 g	200	14.0	~15.0	38 x 21 x 40.5	0.0323
6″	437 g	48	21.0	22.2	33 x 40 x 31	0.041
8″	475 g	48	22.8	24.1	38 x 40 x 31	0.047
10″	505 g	36	18.2	19.5	43 x 40 x 23.5	0.041
12″	550 g	36	19.8	20.5	48.5 x 40 x 23.5	0.0456
18″	660 g	24	15.8	16.6	63.5 x 40 x 16	0.041
24″	770 g	24	18.5	19.3	78 x 40 x 16	0.05
30″	890 g	18	16.0	16.6	94 x 21 x 23.5	0.046
36″	1020 g	18	18.4	18.6	109 x 21 x 23.5	0.0538

All clamps are packed in OPP bags. Carton dimensions are external; G.W. is the gross weight per carton including packaging.

Registered designs

Two Chinese design patents cover the appearance of our clamps. Both were filed on 15 January 2025 and granted in September 2025 by the China National Intellectual Property Administration (CNIPA).

Product	Patent number	Filed	Granted	Publication no.
Trigger bar clamp (F-clamp)	ZL 2025 3 0024613.8	15 Jan 2025	12 Sep 2025	CN 309489885 S
Ratchet A-clamp	ZL 2025 3 0024614.2	15 Jan 2025	5 Sep 2025	CN 309477934 S

Design patents protect the external appearance of the product. Patent numbers can be checked in the CNIPA public register.

Private label and OEM

Custom body colour
Laser marking
Screen printing

Request a quotation

Send us the size, quantity, colour and destination port.

WhatsApp: +86 188 5392 0566
