F-clamp

A one-hand trigger bar clamp for woodworking, cabinetry and furniture assembly. Nine sizes from 4 inch to 36 inch. Each clamp can be reversed so it spreads instead of clamping.

Specifications

Size	Length	Rod dia.	Clamping range	Counter range	Throat depth	Rod material
4″	200 mm	8 mm	0-105 mm	0-210 mm	34 mm	45# carbon steel
6″	320 mm	18 mm	0-150 mm	0-330 mm	63 mm	A3 steel
8″	375 mm	18 mm	0-200 mm	0-360 mm	63 mm	A3 steel
10″	420 mm	18 mm	0-250 mm	0-410 mm	63 mm	A3 steel
12″	475 mm	18 mm	0-300 mm	0-460 mm	63 mm	A3 steel
18″	630 mm	18 mm	0-455 mm	0-610 mm	63 mm	A3 steel
24″	770 mm	18 mm	0-600 mm	0-760 mm	63 mm	A3 steel
30″	930 mm	18 mm	0-750 mm	0-910 mm	63 mm	A3 steel
36″	1080 mm	18 mm	0-900 mm	0-1000 mm	63 mm	A3 steel

Reference values only; final specifications are subject to actual measurement.

Packing data

Size	Unit weight	Pcs / carton	N.W. (kg)	G.W. (kg)	Carton (cm)	CBM
4″	70 g	200	14.0	~15.0	38 x 21 x 40.5	0.0323
6″	437 g	48	21.0	22.2	33 x 40 x 31	0.041
8″	475 g	48	22.8	24.1	38 x 40 x 31	0.047
10″	505 g	36	18.2	19.5	43 x 40 x 23.5	0.041
12″	550 g	36	19.8	20.5	48.5 x 40 x 23.5	0.0456
18″	660 g	24	15.8	16.6	63.5 x 40 x 16	0.041
24″	770 g	24	18.5	19.3	78 x 40 x 16	0.05
30″	890 g	18	16.0	16.6	94 x 21 x 23.5	0.046
36″	1020 g	18	18.4	18.6	109 x 21 x 23.5	0.0538

All clamps are packed in OPP bags. Carton dimensions are external; G.W. is the gross weight per carton including packaging.

How it works

Trigger release — squeeze the trigger to advance the jaw; press the release lever to open it with one hand
Quick-slide button — moves the jaw along the bar to the workpiece
Adjustable jaw screw — fine adjustment for light or uneven clamping
Clamp or spread — reverse the jaw assembly and the clamp pushes apart
PE jaw pads — protect the workpiece from marks

Product photographs

F-clamp, two sizes (cut-out)

Transparent background · 6" and 8" shown

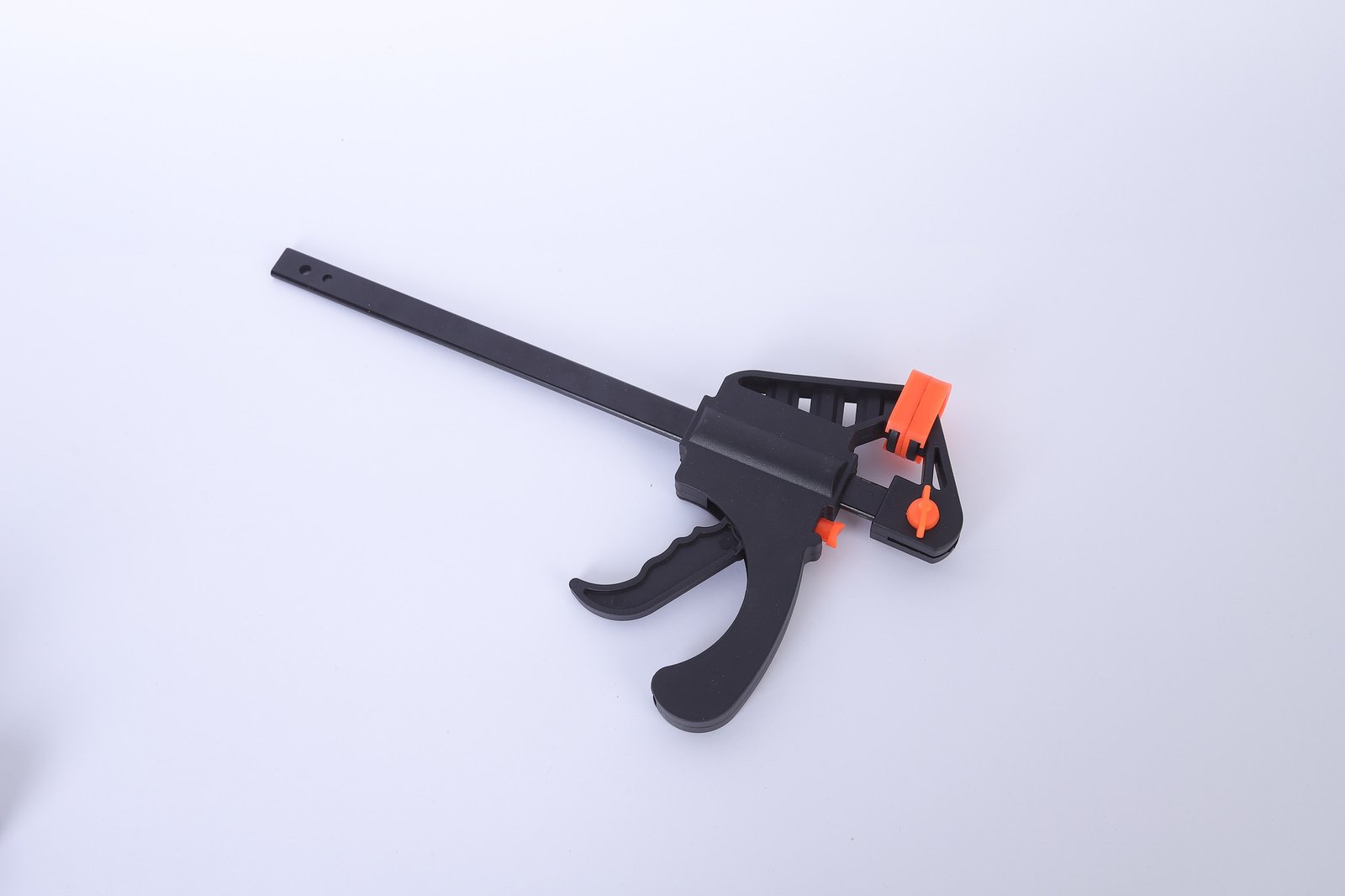

F-clamp, side view

Steel bar, nylon body, trigger handle

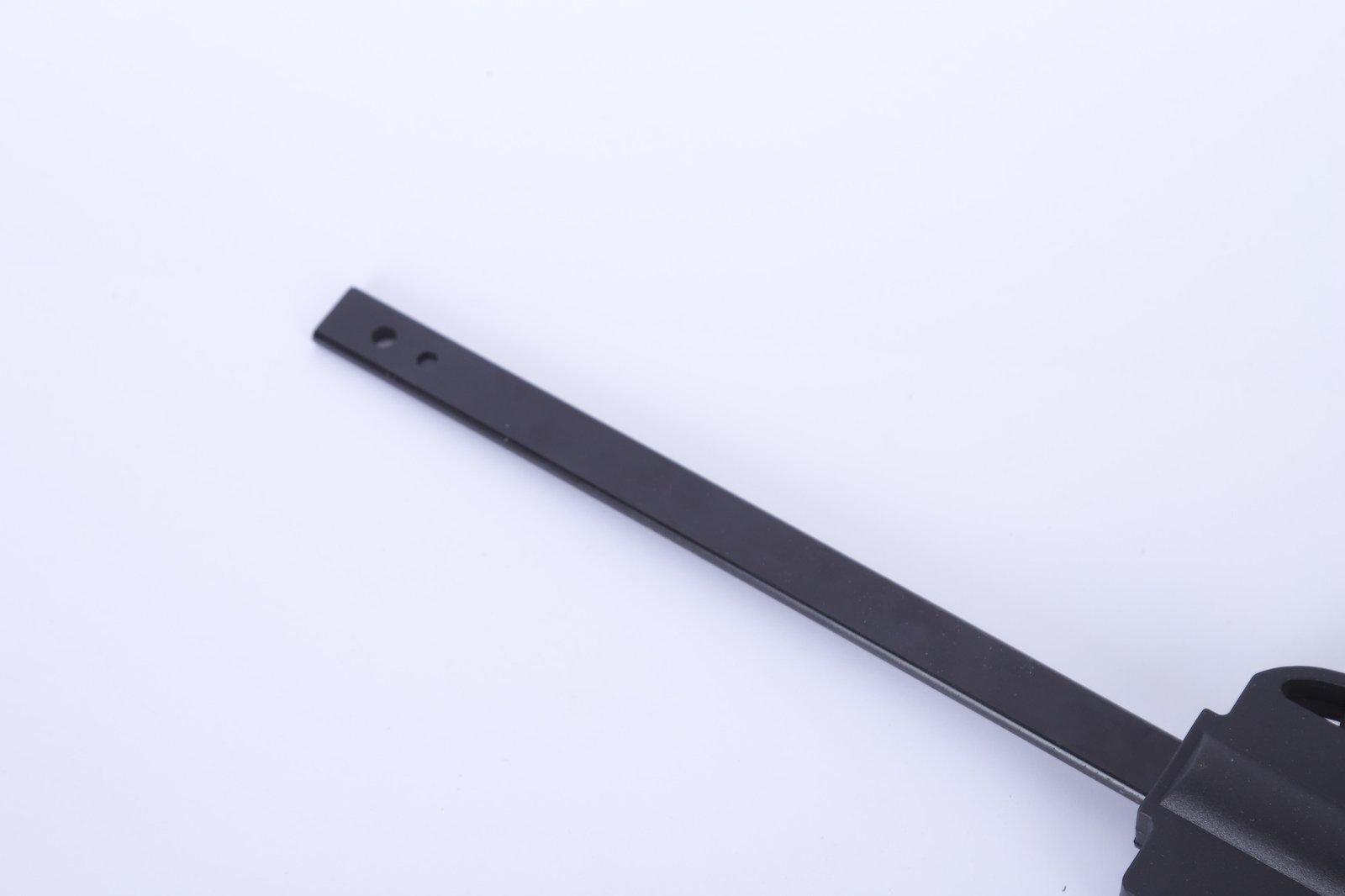

Bar and rod

45# carbon steel on the 4" model

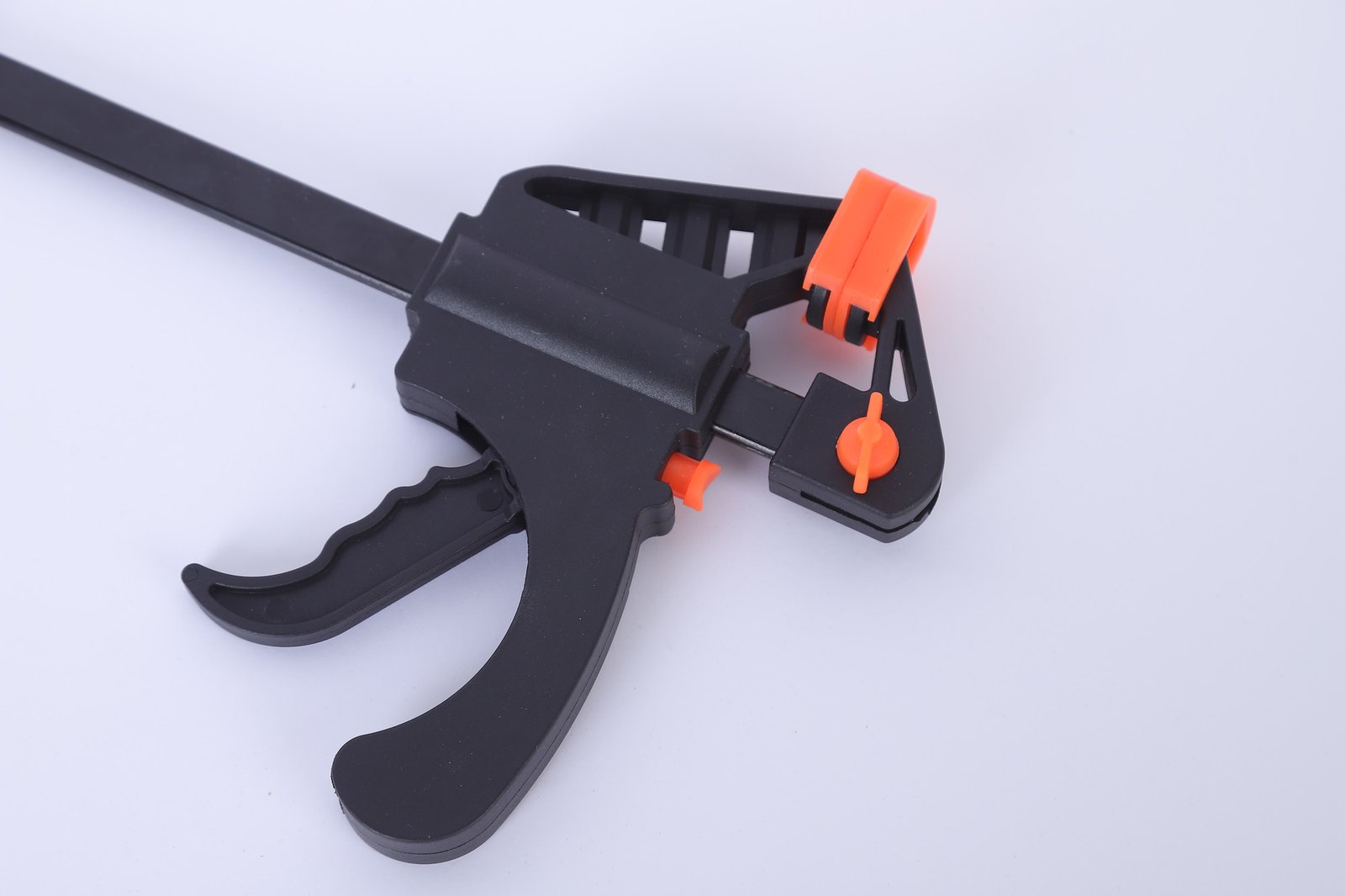

Clamp head and trigger

Trigger release, ribbed nylon body

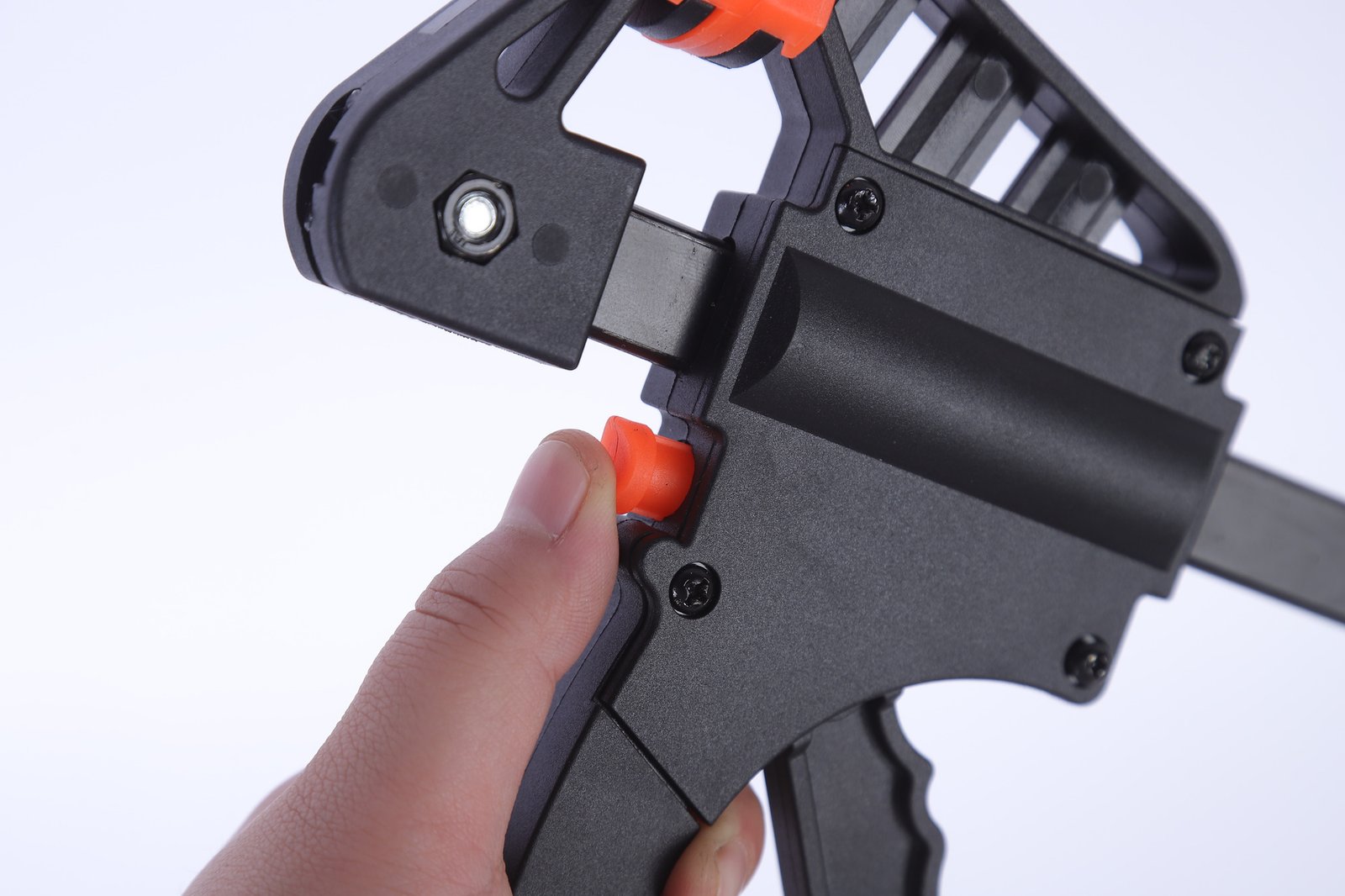

Trigger in use

One-hand operation

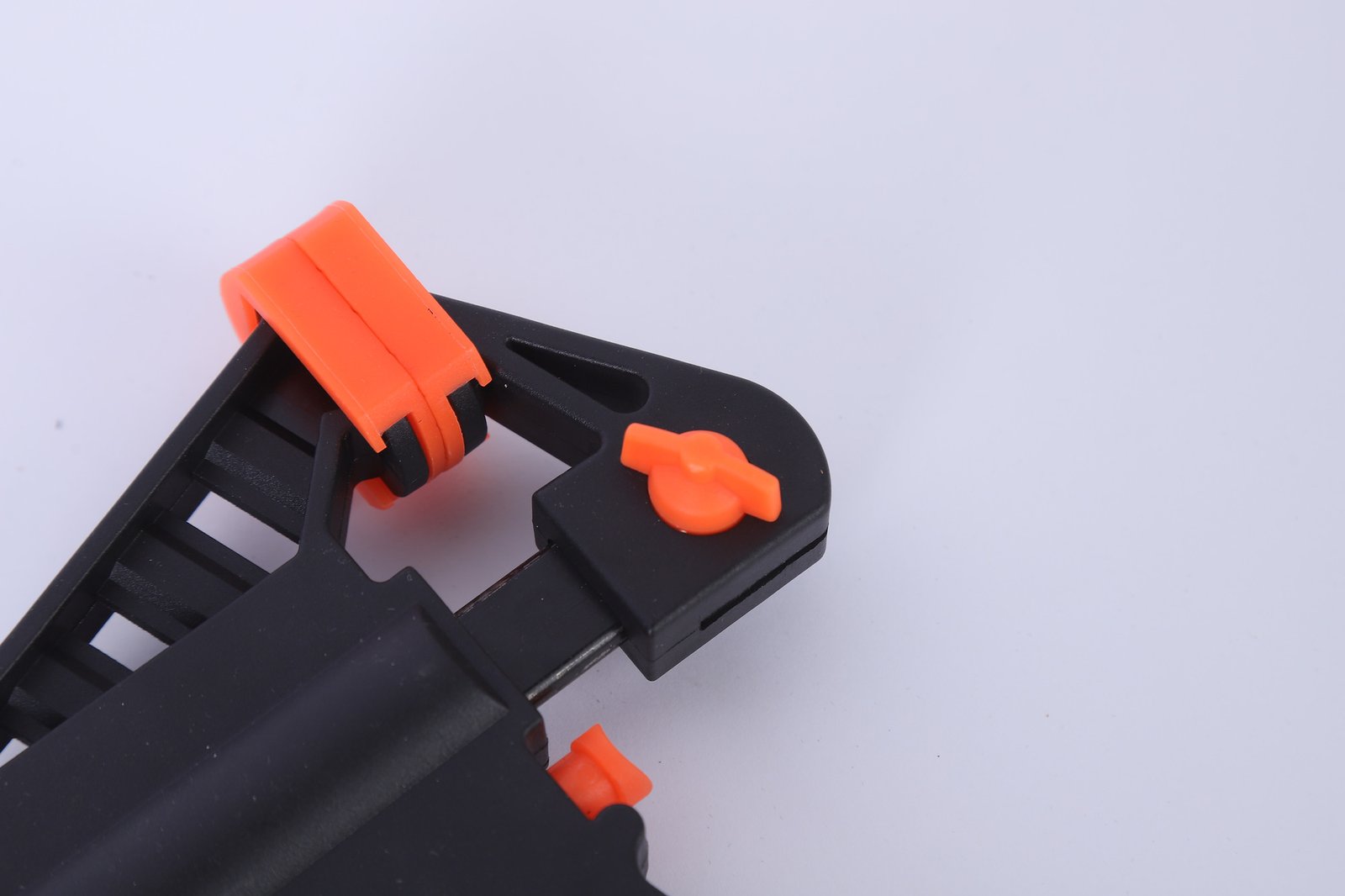

Jaw block and screw

Adjustable jaw screw

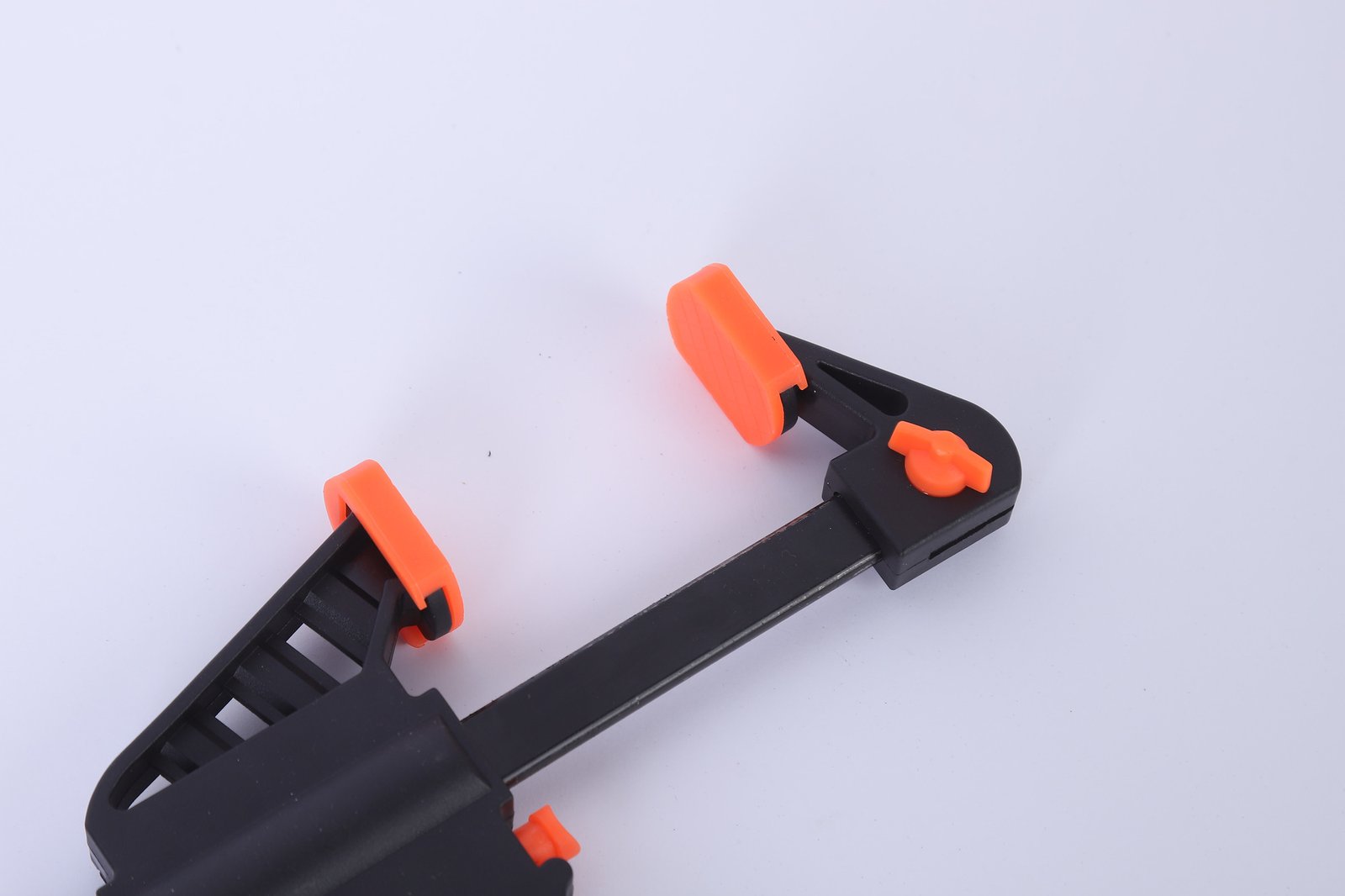

PE jaw pads

Protects the workpiece from marks

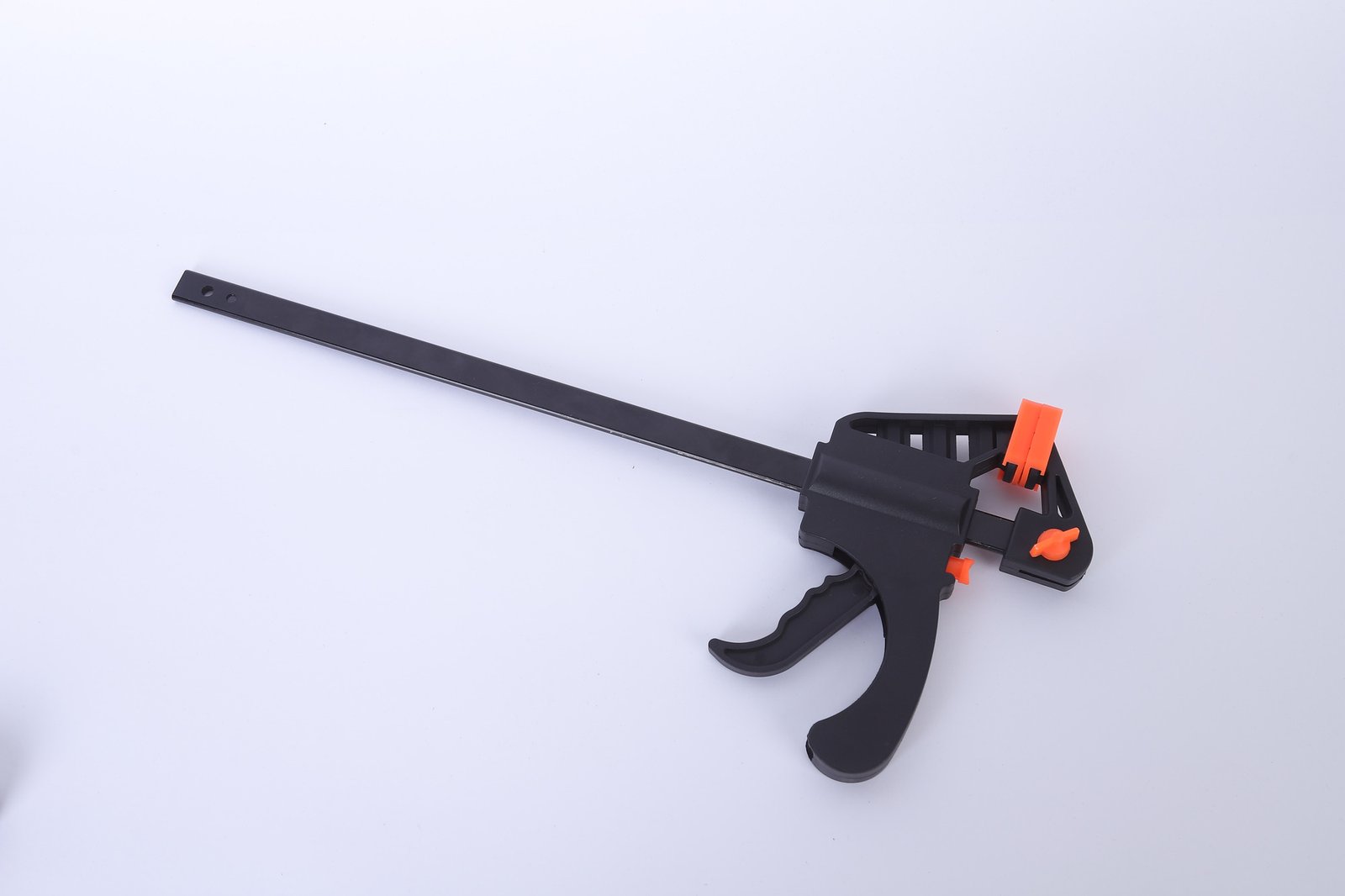

F-clamp, profile

Full length in view

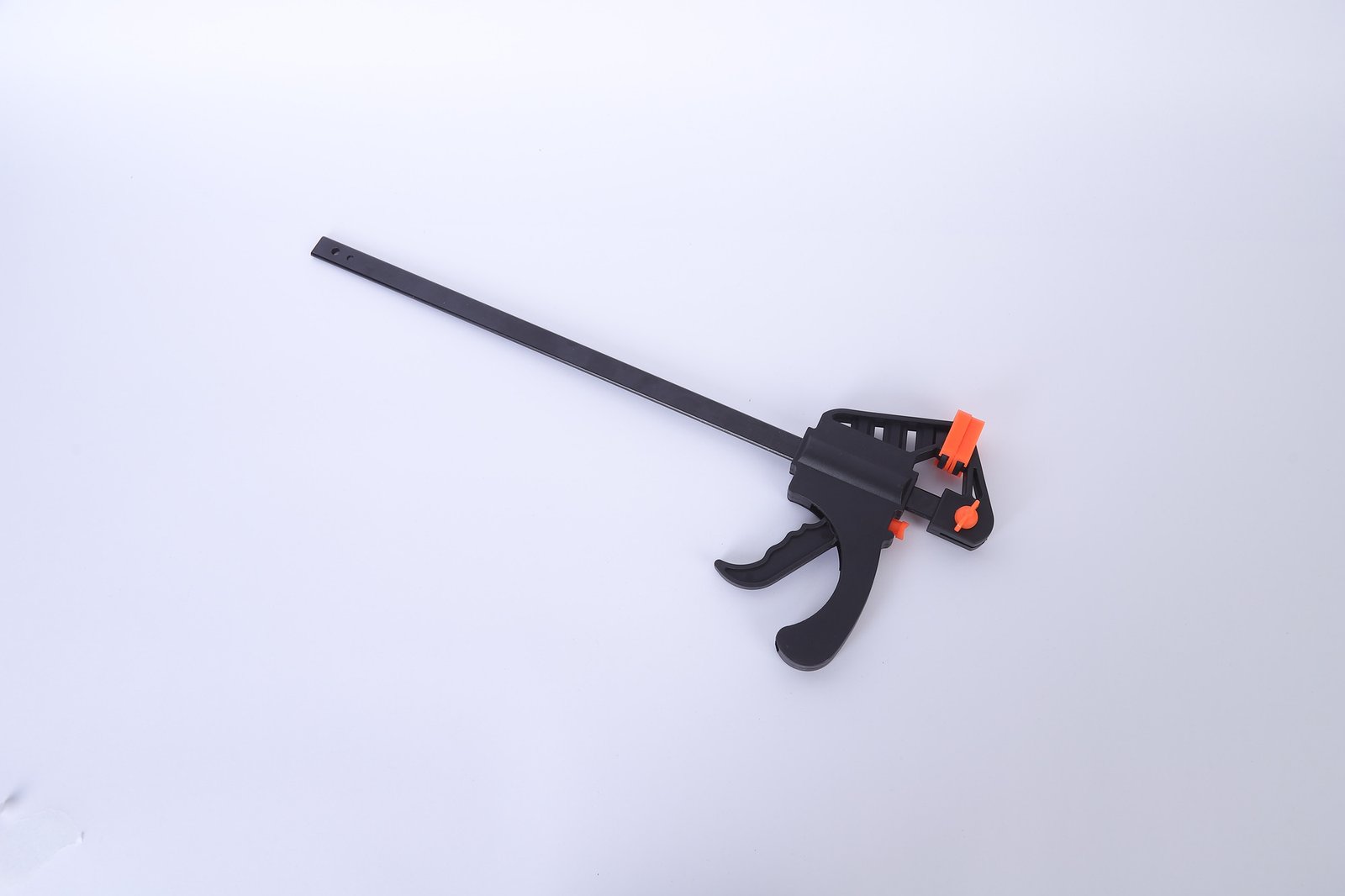

F-clamp, angled

Body and bar geometry

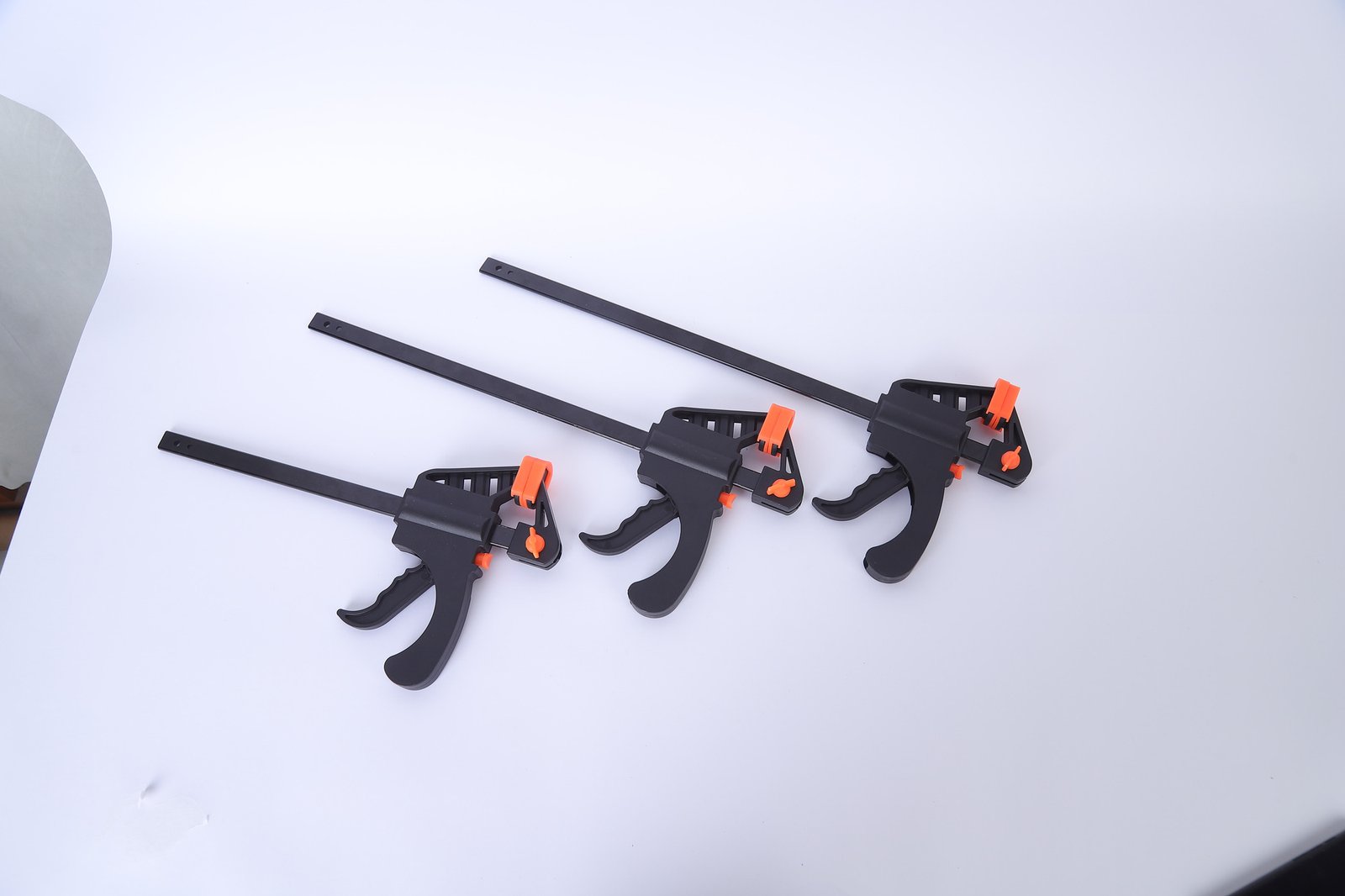

Three sizes compared

Size range across the series

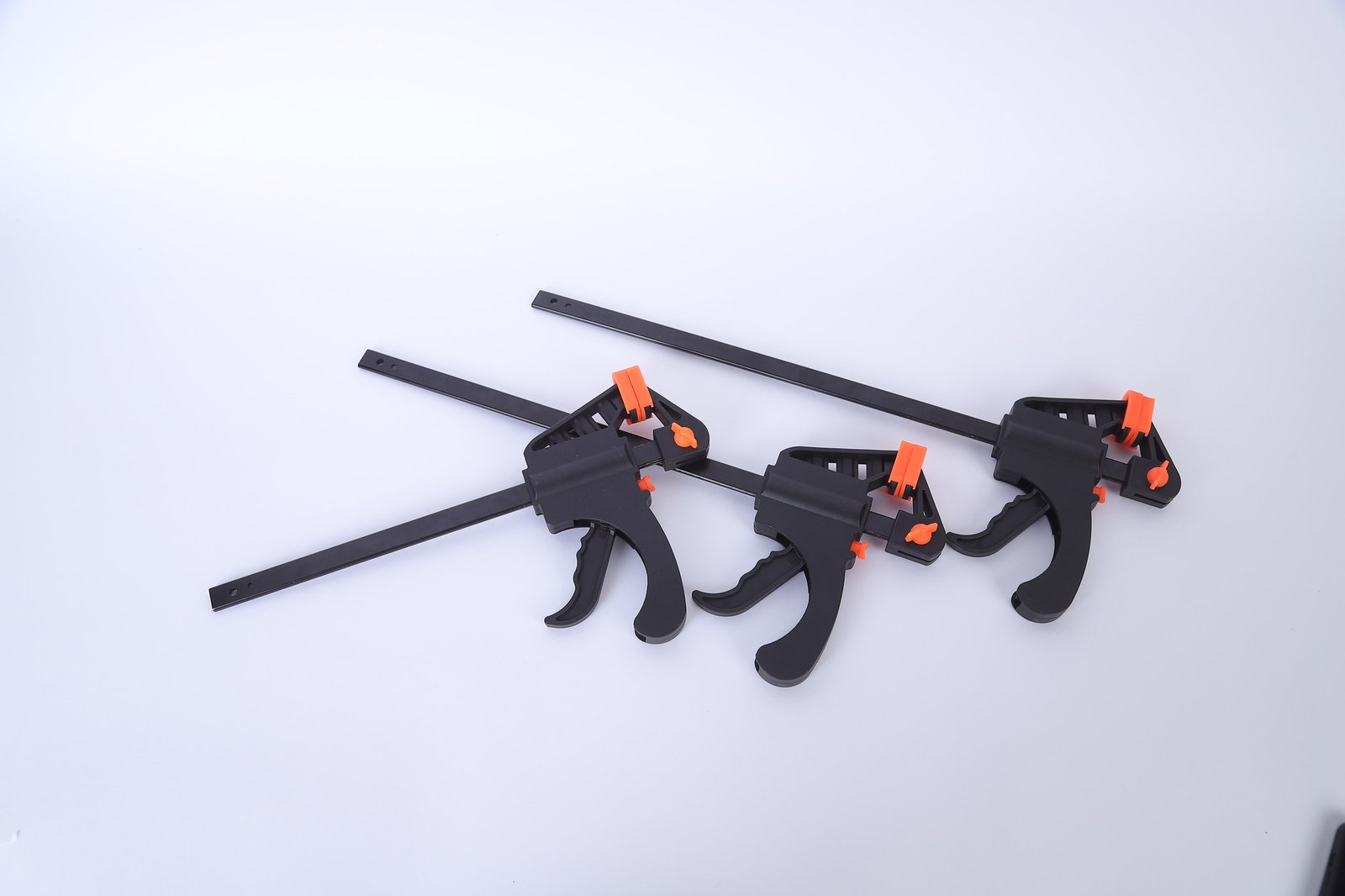

Three sizes, group

Series overview

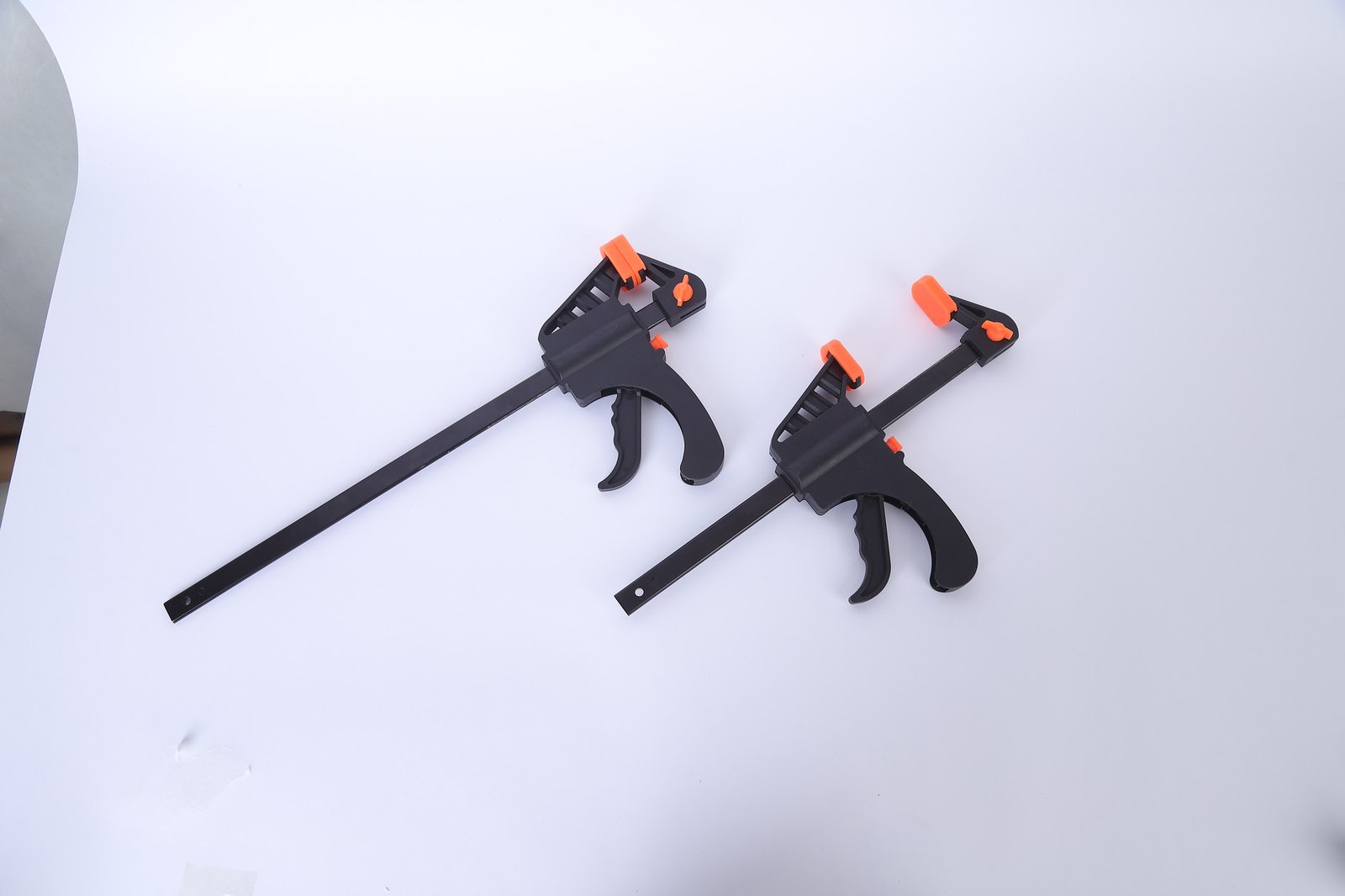

Two sizes, white

Studio photograph

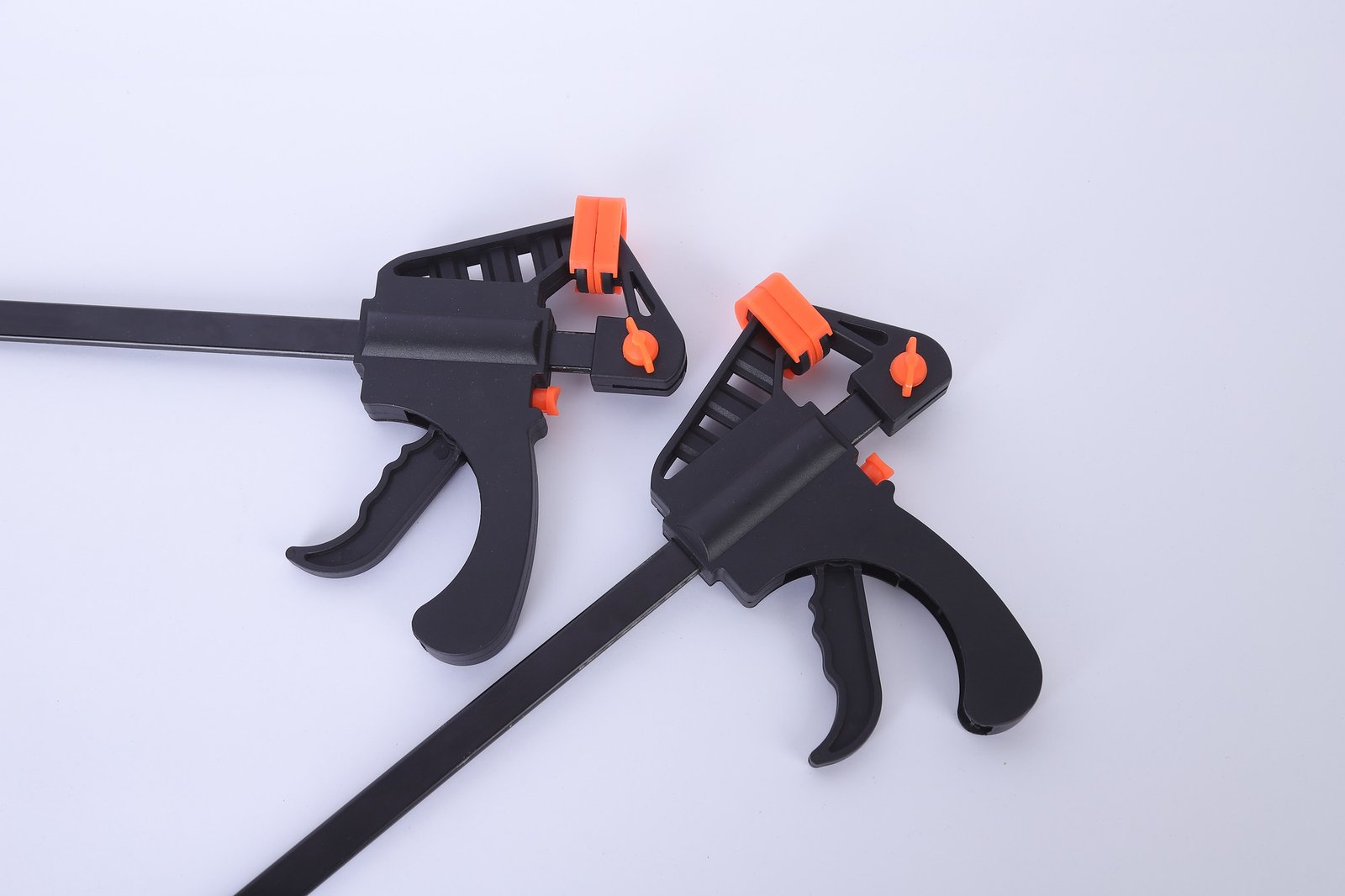

Clamp pair

Trigger handles and jaw pads

Size cards

Specification and packing data for each size.

Specification card for the Wildleg F-clamp 4 inch.

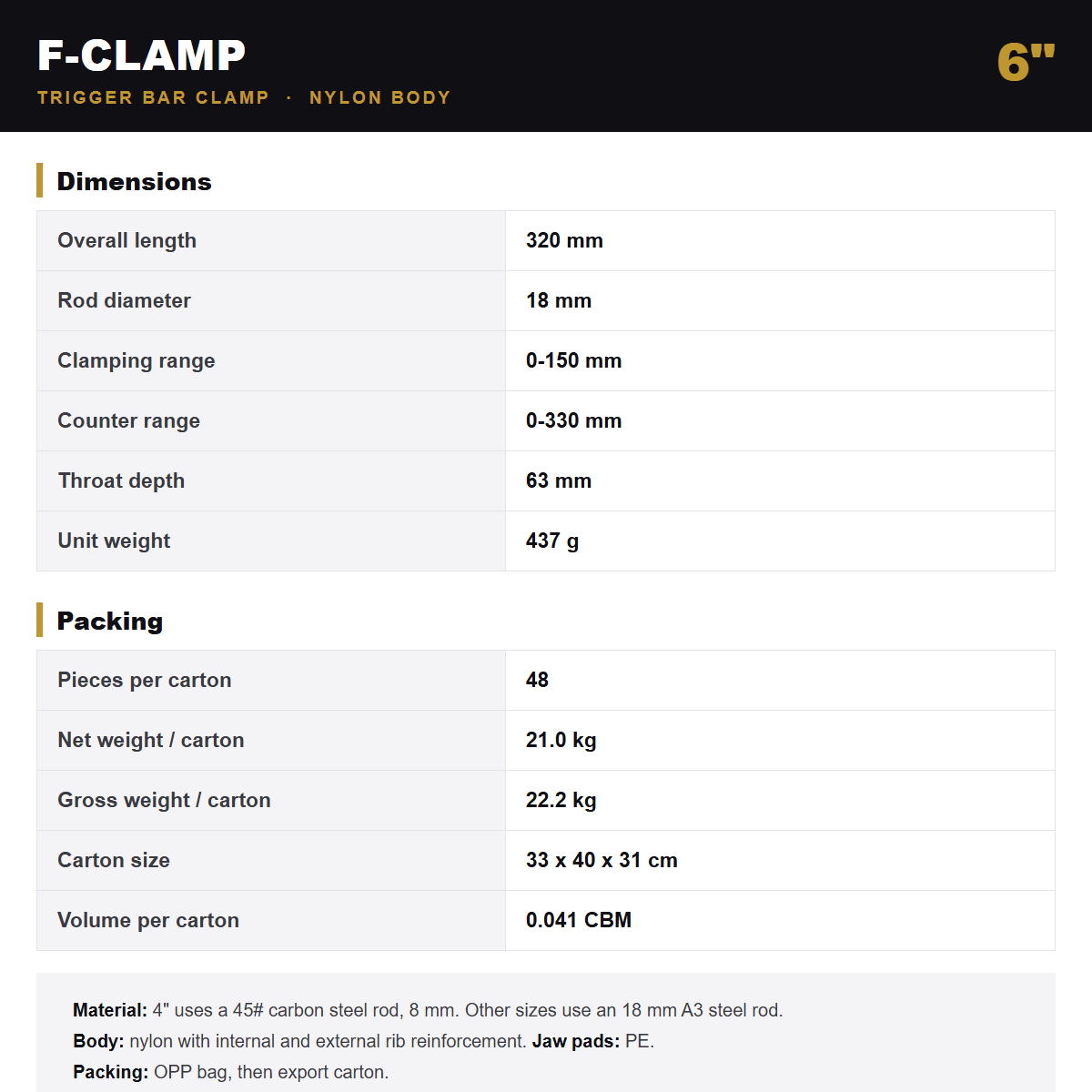

Specification card for the Wildleg F-clamp 6 inch.

Specification card for the Wildleg F-clamp 8 inch.

Specification card for the Wildleg F-clamp 10 inch.

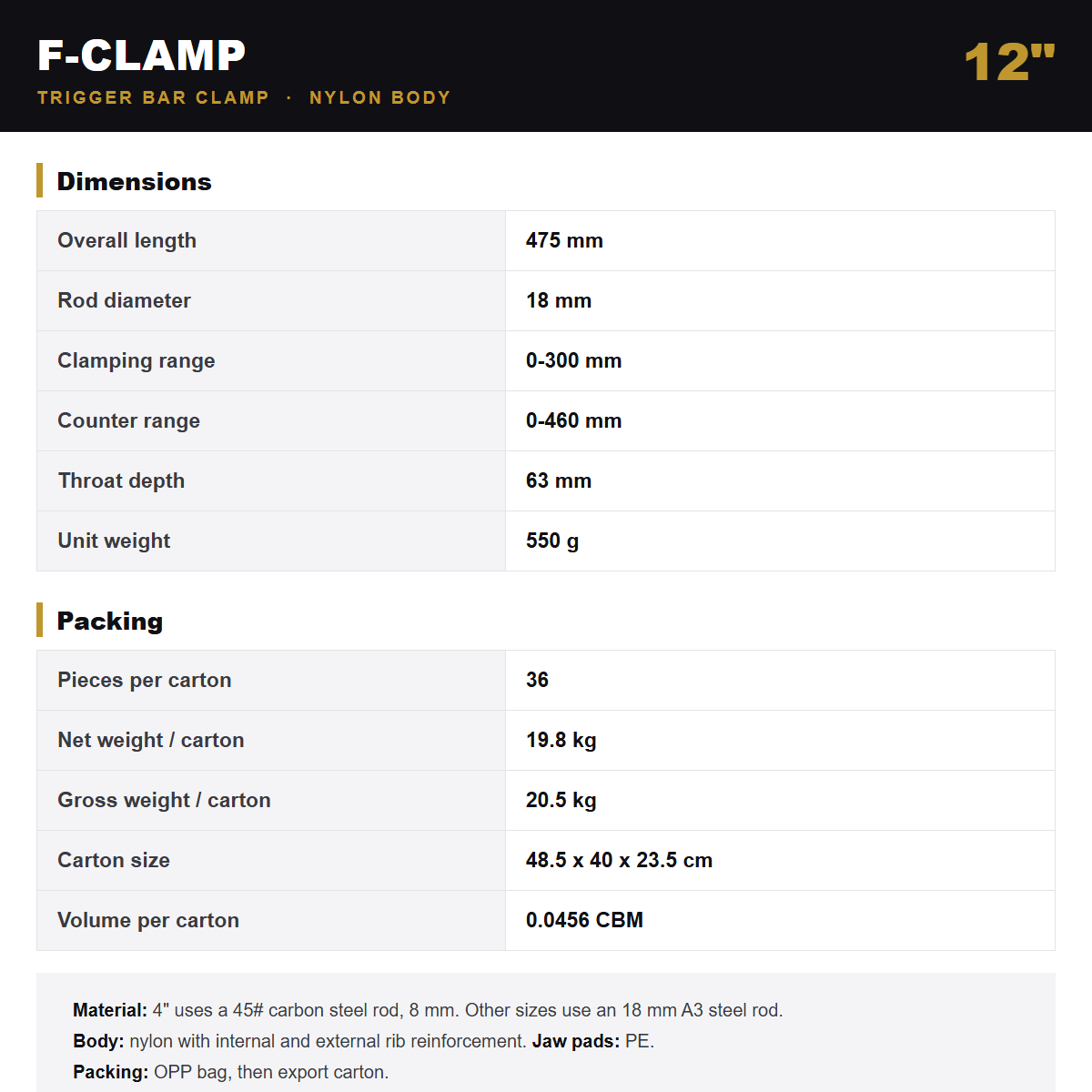

Specification card for the Wildleg F-clamp 12 inch.

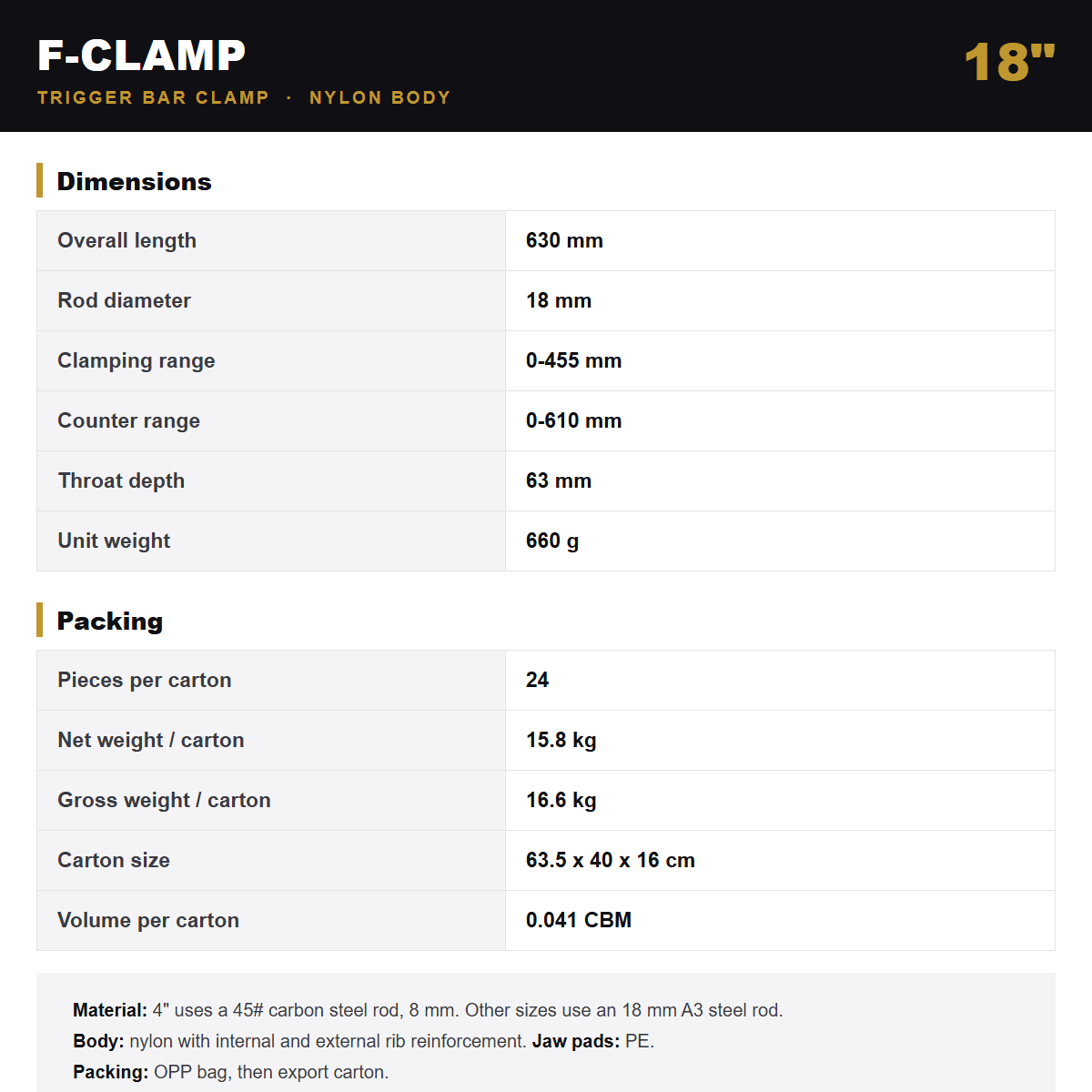

Specification card for the Wildleg F-clamp 18 inch.

Specification card for the Wildleg F-clamp 24 inch.

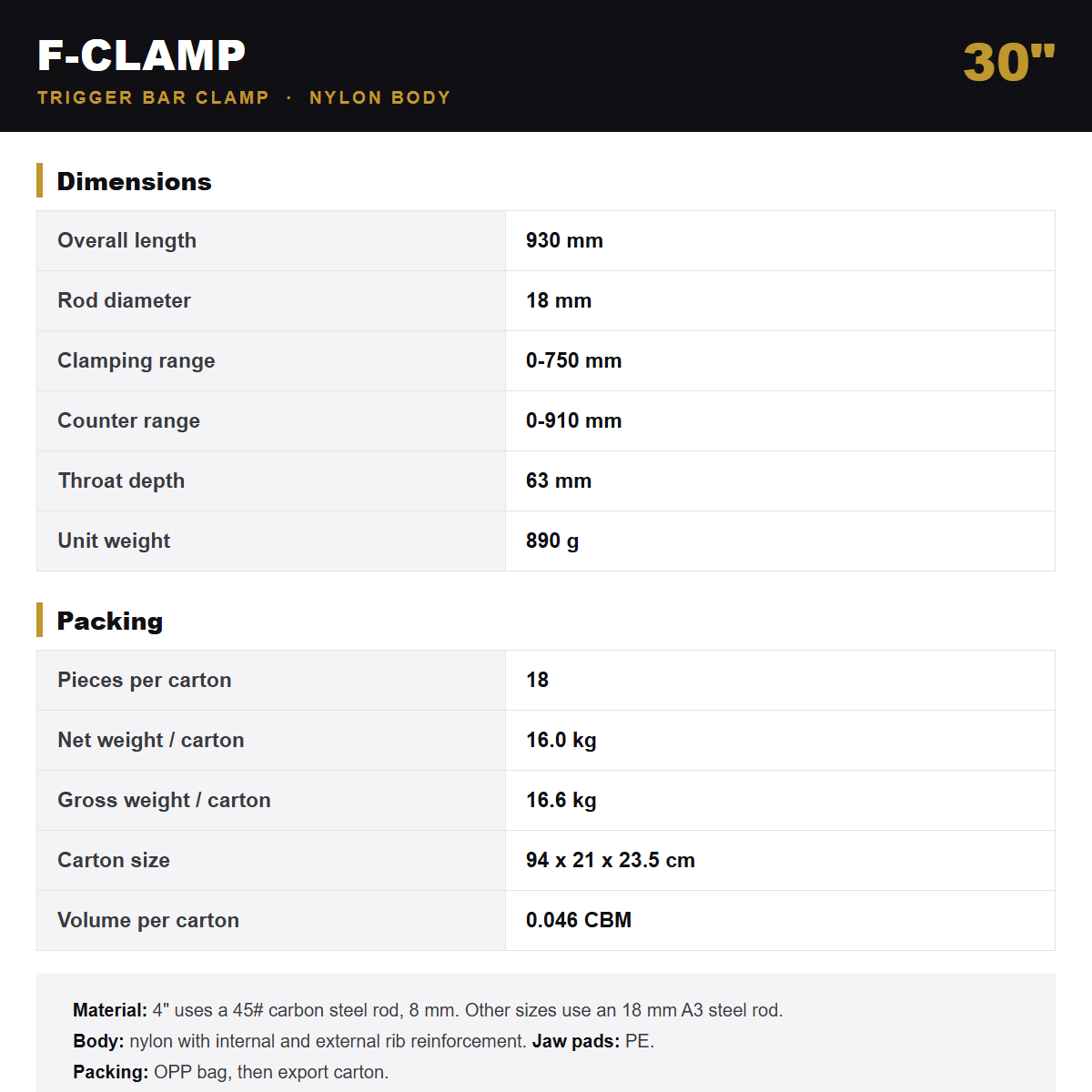

Specification card for the Wildleg F-clamp 30 inch.

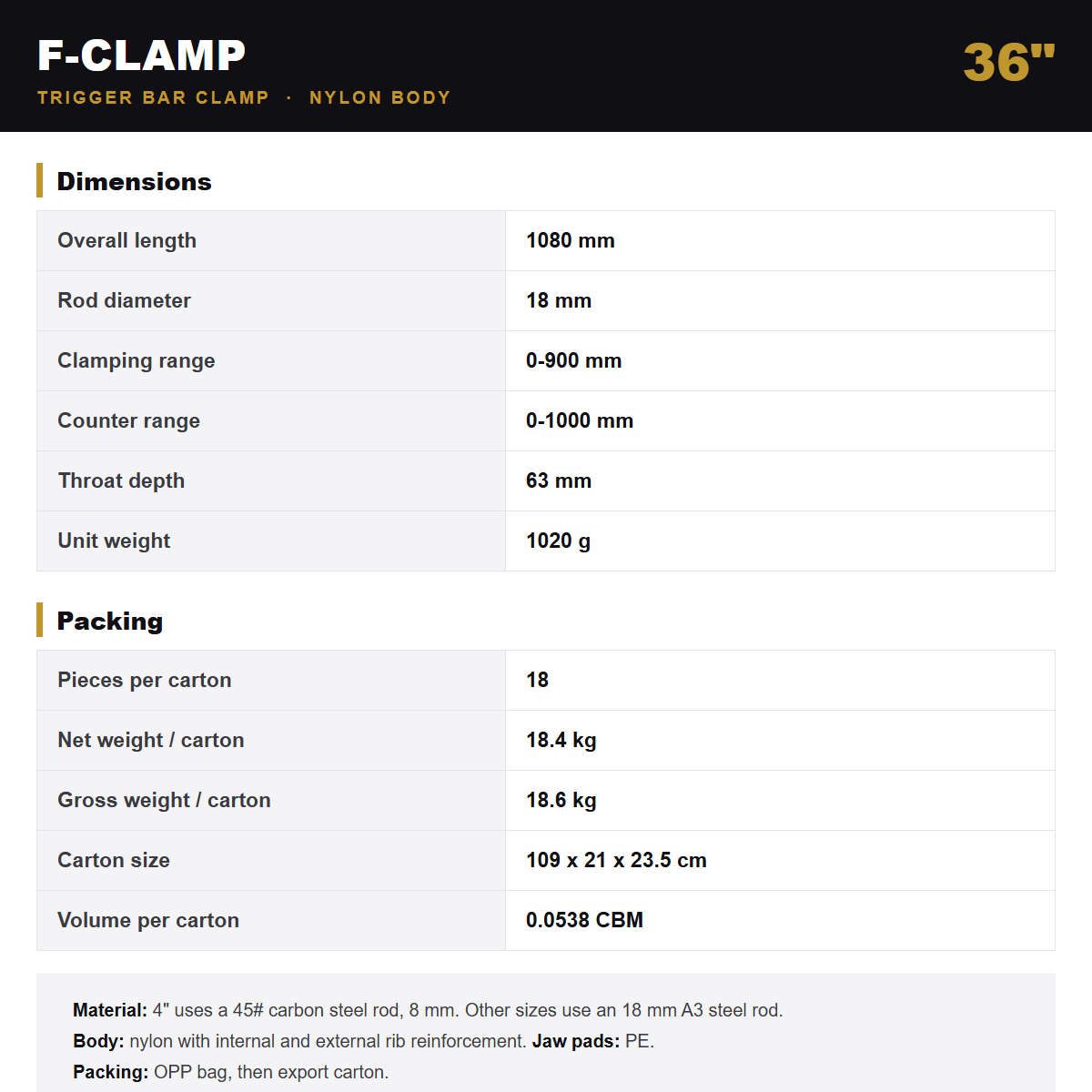

Specification card for the Wildleg F-clamp 36 inch.

Materials and construction

Bar / rod	4 inch: 45# carbon steel, 8 mm. 6 inch to 36 inch: A3 steel, 18 mm
Body and handle	Nylon with internal and external rib reinforcement
Jaw pads	PE (polyethylene)
Packaging	OPP bag, then export carton

Minimum order and lead time

MOQ: 20 cartons total, mixed sizes accepted. Lead time is confirmed with the quotation.

Registered designs

Product	Patent number	Filed	Granted
F-clamp	ZL 2025 3 0024613.8	15 Jan 2025	12 Sep 2025
Ratchet A-clamp	ZL 2025 3 0024614.2	15 Jan 2025	5 Sep 2025

Private label and OEM

Custom body colour
Laser marking
Screen printing

Request a quotation

WhatsApp / WeChat: +86 188 5392 0566 | +86 188 6664 8298
